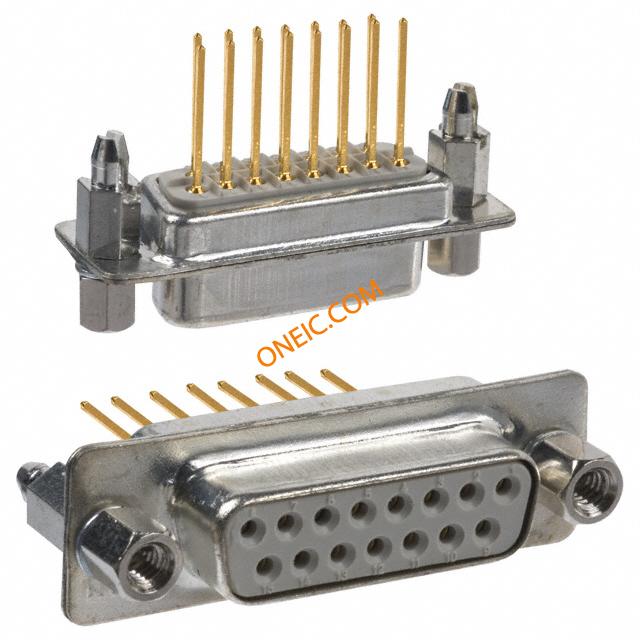

172-015-242R911
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 28 | Factory Pack Quantity | 28 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Termination | Wire Wrap | Contact Type | Signal |
| Mounting Type | Through Hole | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Female | Features | Board Lock |
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 172-yyy-242Ryy1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
