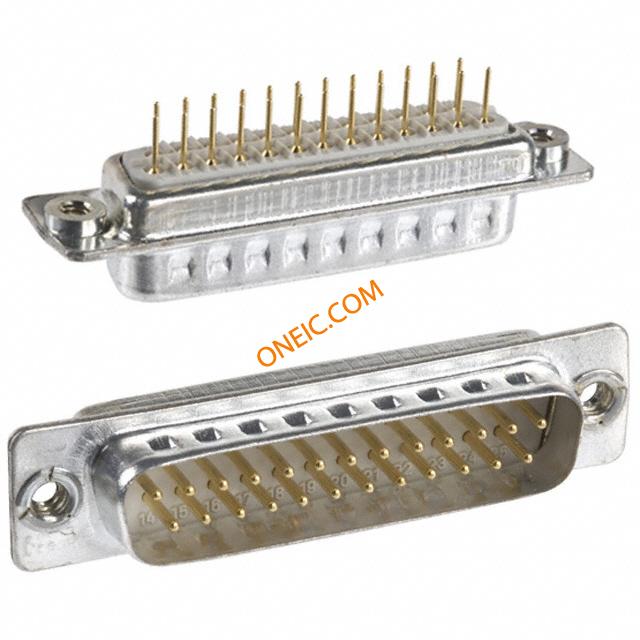

172-025-112R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P Male CONN DB25 MALE DIP SOLDER TIN |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Beige | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder |
| 触点形式 | Signal | 触头类型 | Machined Contacts |
| 安装类型 | Vertical | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT), Polyester | 端接样式 | Solder |
| 触点数 | 25 | 绝缘材料 - 类型 | Polybutylene Terephthalate (PBT) |
| 位数 | 25 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 连接器性别 | Male | 系列 | 172 |
| 产品特性 | Grounding Indents | 主要用途 | Grounding Indents |
| 输出配置 | Through Hole | ||
环境参数
| 工作温度 | - 50 C to + 100 C | ||
