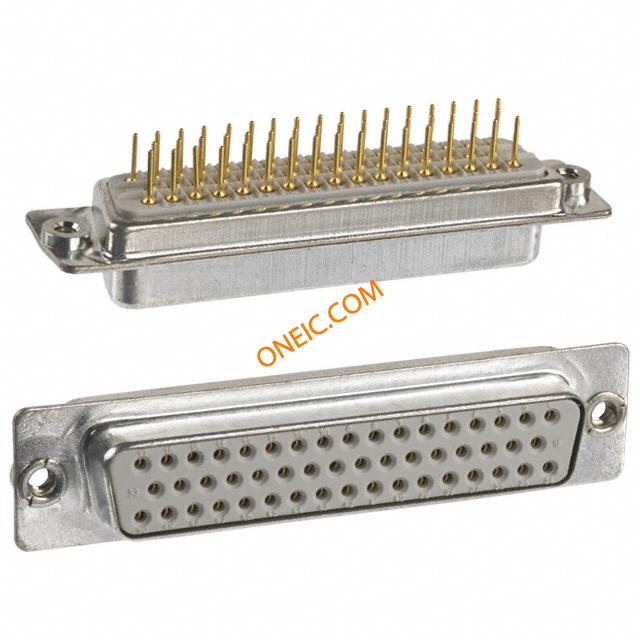

172-050-212R011
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Beige | Height | 15.3 mm |
| Packaging | Tray | Insulation | Insulated |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Termination Style | Solder |
| Number of Contacts | 50 | Number of Positions | 50 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Gender | Female | ||
Environmental
| Operating Temperature | - 50 C to + 125 C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 172-050-212Rxx1.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
