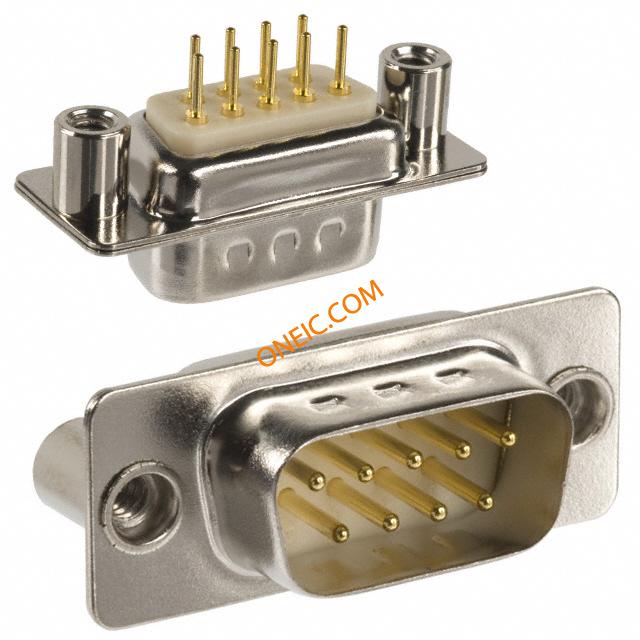

172-E09-113R021
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 80 | Factory Pack Quantity | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polyamide (PA6T), Nylon 6T | Termination Style | Solder |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Male | Features | Grounding Indents |
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Archive
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 172-E09-113Rzz1.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
