点击放大查看

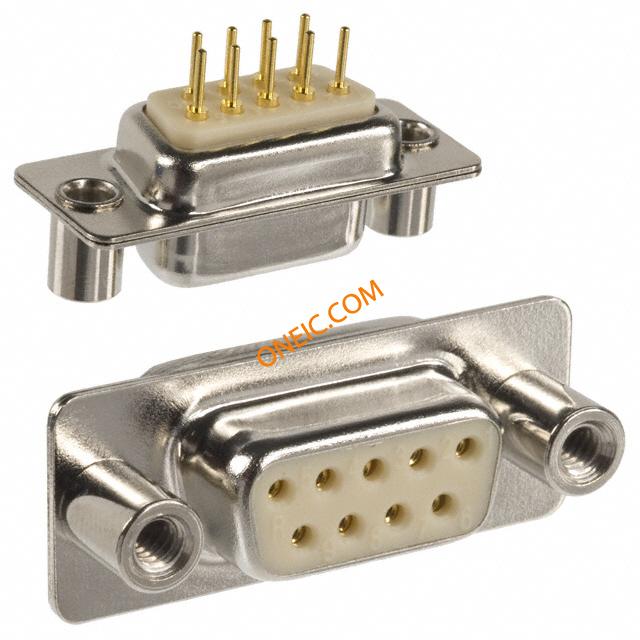

172-E09-213R031
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE DIP SOLDER .250 NUTS M/S CONN DB9 FEMALE SOLDER DIP NKL |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 80 | 工厂包装数量 | 80 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | White | 包装方式 | Tray |
| 端接方式 | Solder | 触点形式 | Signal |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side (4-40) |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | D-Sub | 壳体材料 | Polyamide (PA6T), Nylon 6T |
| 端接样式 | Solder | 触点数 | 9 |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Female | 系列 | 172-E, M Series |
| 输出配置 | Through Hole | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
