点击放大查看

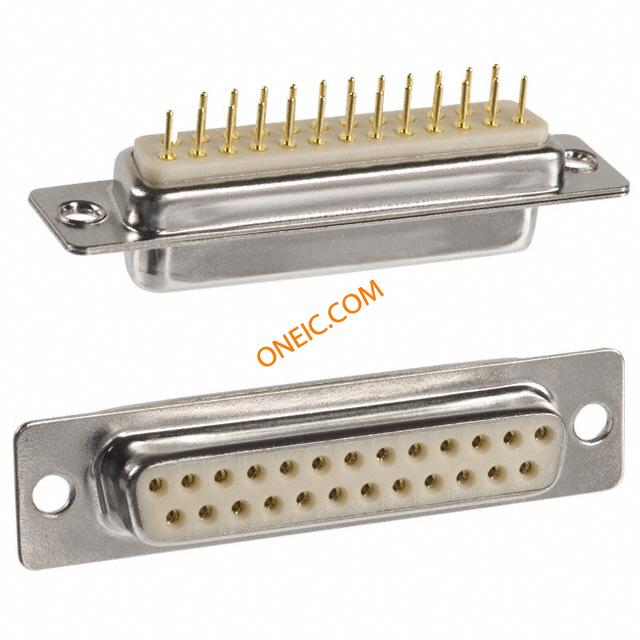

172-E25-213R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P FEMALE DIP SODR CONN DB25 FEMALE SLD DIP NKL DSUB, SOCKET, THT, 25WAY |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - M Series | 最大额定电流 | 5 A |
机械参数
| 颜色 | White | 重量 | 0.0129 |
| 包装方式 | Tray | 外壳尺寸 | :DB |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Through Hole | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | D-Sub |
| 本体材料 | :Steel | 壳体材料 | Polyamide (PA6T), Nylon 6T |
| 端接样式 | Solder | 触点数 | 25 |
| 接触件端接 | :Solder | 位数 | 25 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 连接器性别 | Female | 系列 | :M-Series |
环境参数
| 插拔次数 | :100 | 工作温度 | -50°C ~ 100°C |
