点击放大查看

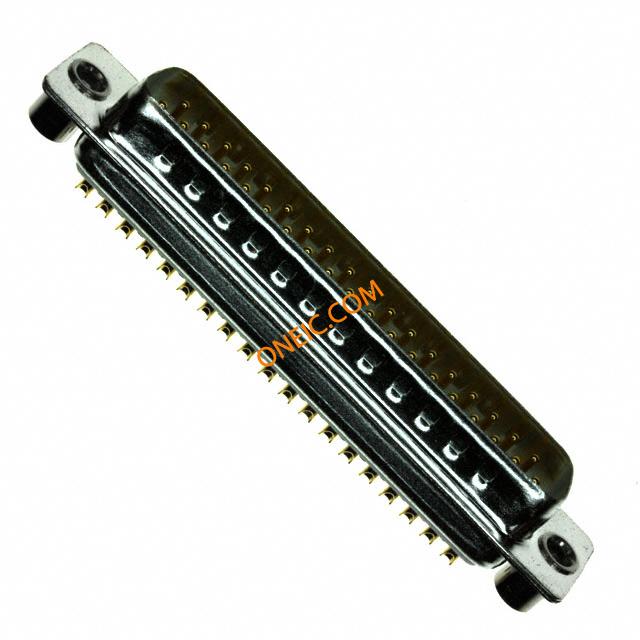

172-E37-102-021
| Manufacturer | |
| Description | D-Sub Standard Connectors 37 POS. SO./CUP MALE .250 NUTS B/S CONN DB37 MALE SOLDER CUP TIN |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 30 |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | No | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | White | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Vertical | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Solder | 触点数 | 37 |
| 位数 | 37 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 连接器性别 | Male | 系列 | 172 |
| 产品特性 | Grounding Indents | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -50°C ~ 100°C |
Documents & Media
相关型号

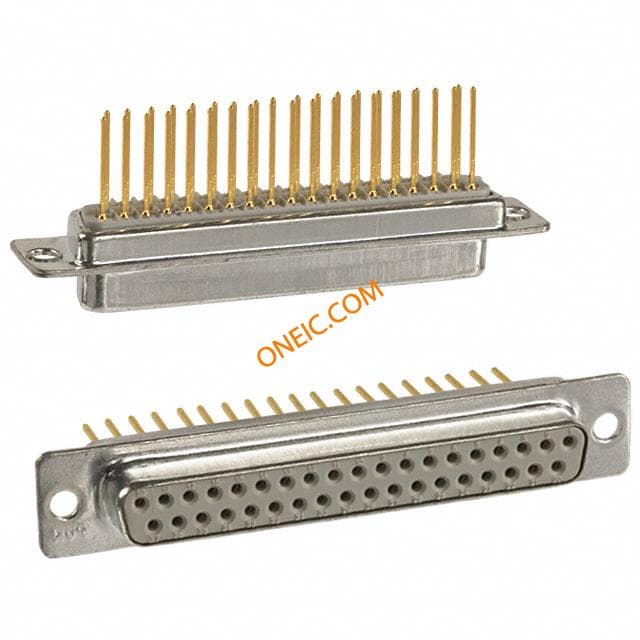

172-037-242R001
NorComp
D-Sub Standard Connectors 37P FEMALE WIRE-WIRE CONN DB37 FEMALE WIRE WRAP TIN
172-037-202R001
NorComp
D-Sub Standard Connectors 37P Female Sol Cup Gold Flash CONN DB37 FEMALE SOLDER CUP TIN

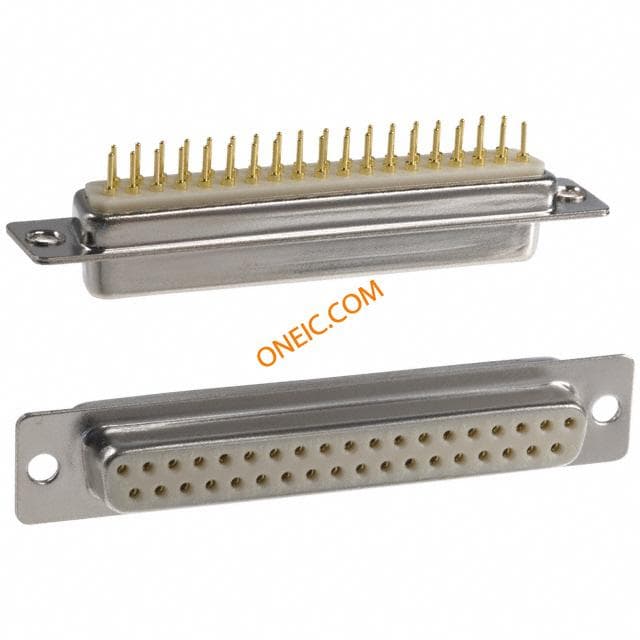

172-E37-213R001
NorComp
D-Sub Standard Connectors 37P FEMALE DIP SODR CONN DB37 FEMALE SLD DIP NKL

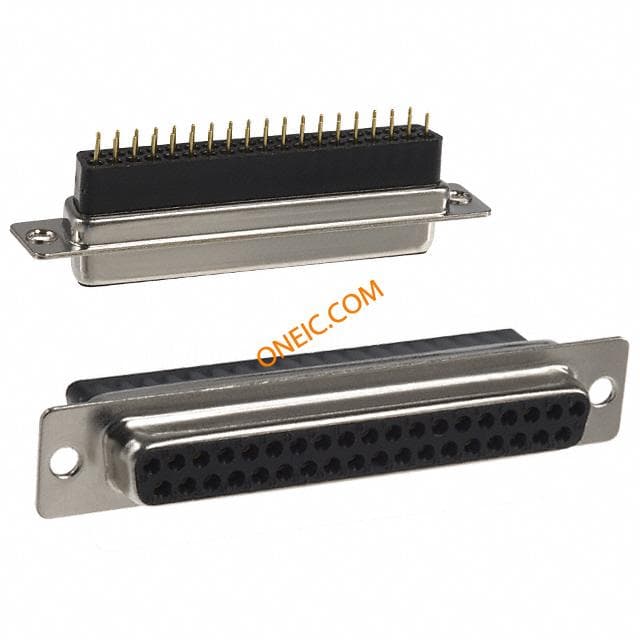

172-037-283L001
NorComp
D-Sub Standard Connectors 37P Female CONN DB37 FEMALE HI PROFILE NKL
172-037-212R001
Norcomp Inc.
CONN DB37 FEMALE DIP SOLDER TIN D-Sub Standard Connectors 37POS FEM 5A Steel

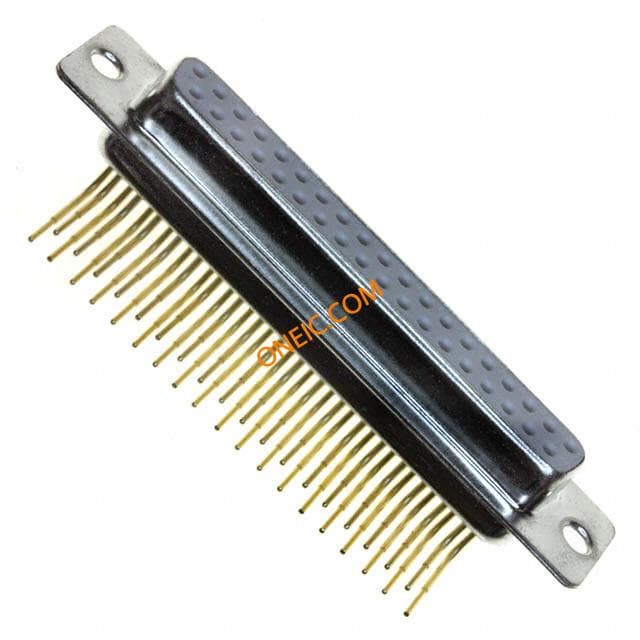

174-E37-212-001
Norcomp Inc.
CONN DB37 FMALE .370" R/A TIN
174-E37-213R001
Norcomp Inc.
CONN DB37 FMALE .370" R/A NICKEL D-Sub Standard Connectors 37POS FEM 5A Steel

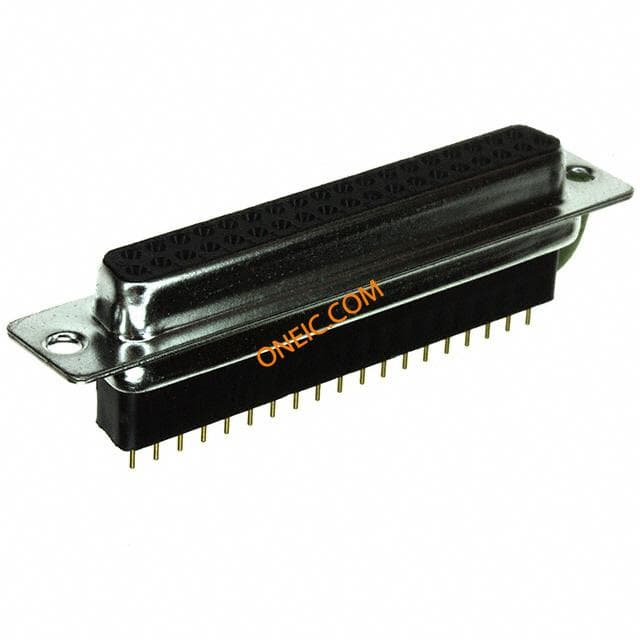

172-037-282-001
Norcomp Inc.
CONN DB37 FEMALE HI PROFILE TIN
172-037-281L001
Norcomp Inc.
CONN DB37 FEM HI PRO YLW CHROME
174-E37-211R001
Norcomp Inc.
CONN DB37 FMALE .370" R/A CHROME
173-E37-213R001
Norcomp Inc.
CONN DB37 FMALE .283" R/A NICKEL D-Sub Standard Connectors 37POS FEM 5A Steel
172-037-281-001
Norcomp Inc.
CONN DB37 FEM HI PRO YLW CHROME

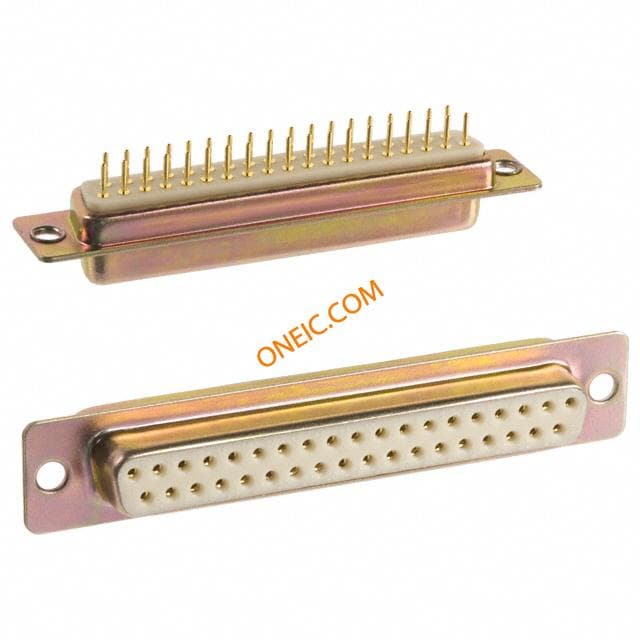

172-E37-211R001
Norcomp Inc.
CONN DB37 FEMALE SLD DIP CHROME

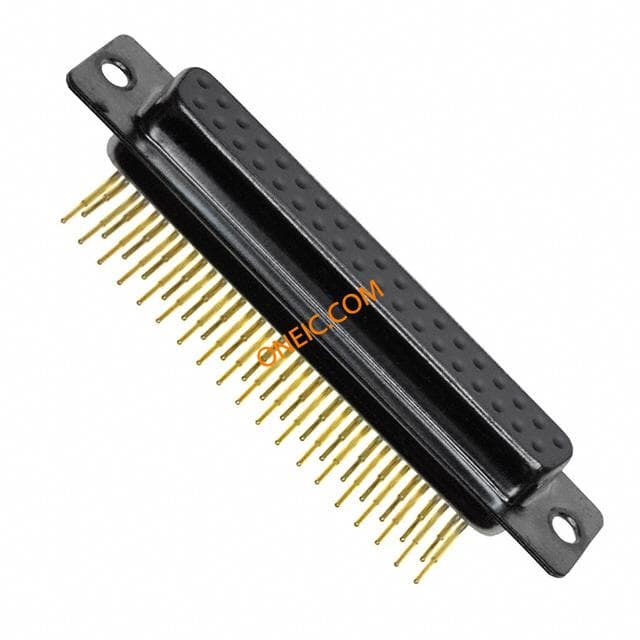

173-E37-212-001
