点击放大查看

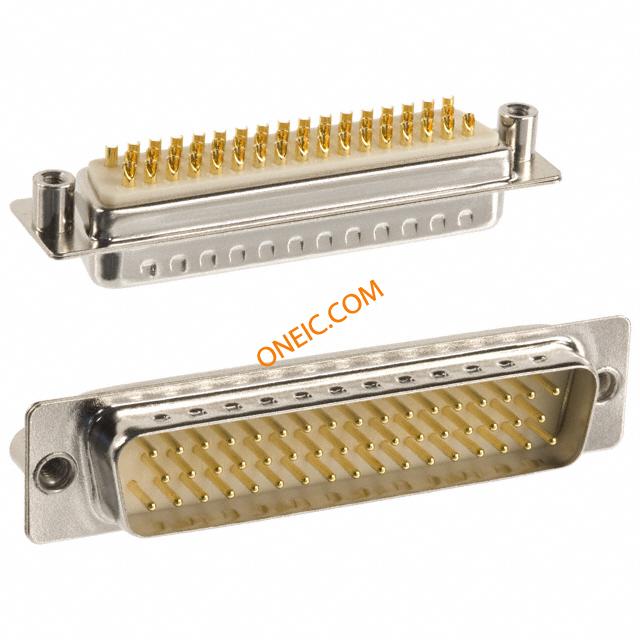

172-E50-103R021
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P SOLDER CUP MALE .250 NUTS B/S CONN DB50 MALE SOLDER CUP NKL |
| Category |
商业参数
| 商标名 | M-SERIES | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 40 | 工厂包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | White | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line); Panel Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Board Side (4-40) | 安装样式 | Wire |
| 排数 | 3 | 连接器样式 | D-Sub |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder |
| 触点数 | 50 | 位数 | 50 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 5 (DD, D) | ||
产品信息
| 连接器性别 | Male | 产品特性 | Grounding Indents |
环境参数
| 工作温度 | -50°C ~ 100°C | ||
