点击放大查看

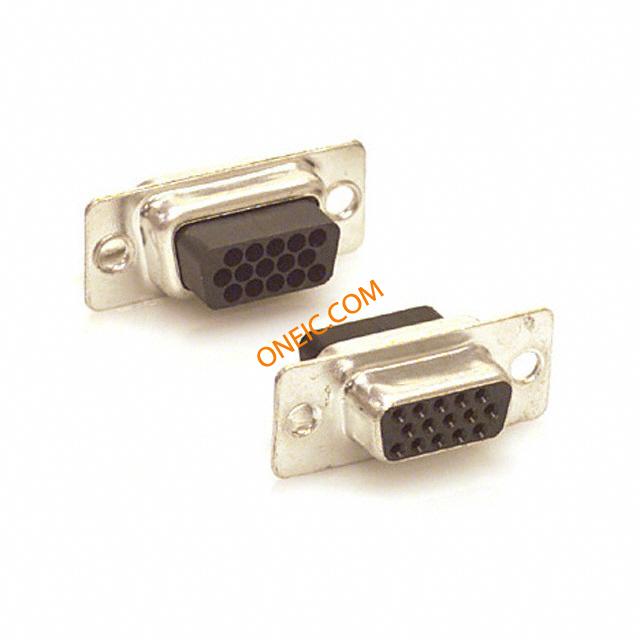

180-015-272L000
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Female CONN DB15 FEMALE HD CRIMP TIN |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 5 A |
机械参数
| 包装方式 | Tray | 绝缘类型 | Insulated |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub, High Density | 端接样式 | Crimp |
| 触点数 | 15 | 绝缘材料 - 类型 | Thermoplastic, Glass Filled |
| 位数 | 15 | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 1 (DE, E) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 180 | 产品特性 | Shielded |
环境参数
| 工作温度 | -50°C ~ 100°C | ||
Documents & Media
相关型号
.jpg&w=3840&q=75)
180-015-102L031
NorComp
D-Sub High Density Connectors 15P Male Solder Cup CONN DB15 MALE HD SOLDER CUP TIN
180-015-172L000
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD CRIMP TIN
180-015-173L030
NorComp
D-Sub High Density Connectors 15P Male Crimp w/ Clinch Nut 3 CONN DB15 MALE HD CRIMP NICKEL
180-015-173L000
NorComp
D-Sub High Density Connectors 15P MALE CRIMP POKE NICKEL SHELL CONN DB15 MALE HD CRIMP NICKEL D-SUB SHELL, DB15, CRIMP, PLUG, 15WAY
180-015-172L020
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD CRIMP TIN
971-009-030R121
NorComp
D-Sub Backshells 9P 45 DEGREE DIECAST NICKEL PLATED BACKSHELL DB9 DIE CAST NKL 45DEG HOOD, DSUB, 45DEG, 4-40 SCREW, 9WAY
180-015-172L010
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD CRIMP TIN
180-015-172L030
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD CRIMP TIN
180-015-102L001
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD SOLDER CUP TIN
180-015-102L021
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD SOLDER CUP TIN
180-015-173L020
NorComp
D-Sub High Density Connectors 15P Male Crimp w/ Clinch Nut 2 CONN DB15 MALE HD CRIMP NICKEL
180-015-102L011
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD SOLDER CUP TIN
180-015-173L010
NorComp
D-Sub High Density Connectors 15P Male Crimp w/ Clinch Nut 1 CONN DB15 MALE HD CRIMP NICKEL
180-015-172-030
Norcomp Inc.
CONN DB15 MALE HD CRIMP TIN

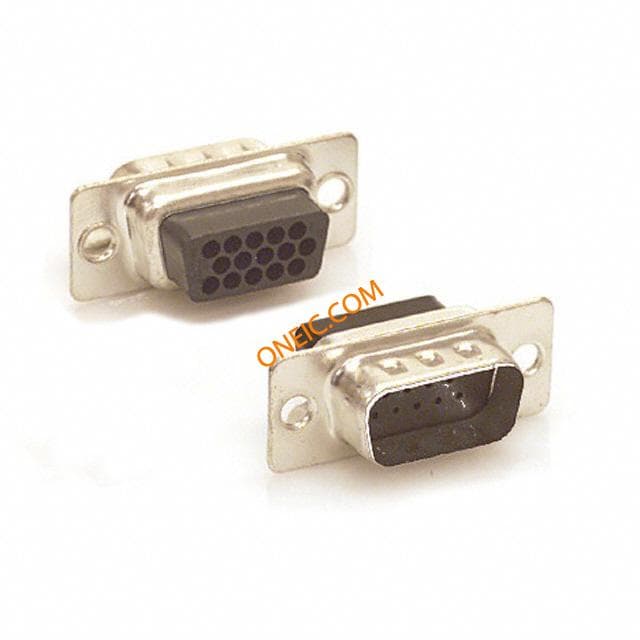

180-015-172-000
Norcomp Inc.
CONN DB15 MALE HD CRIMP TIN

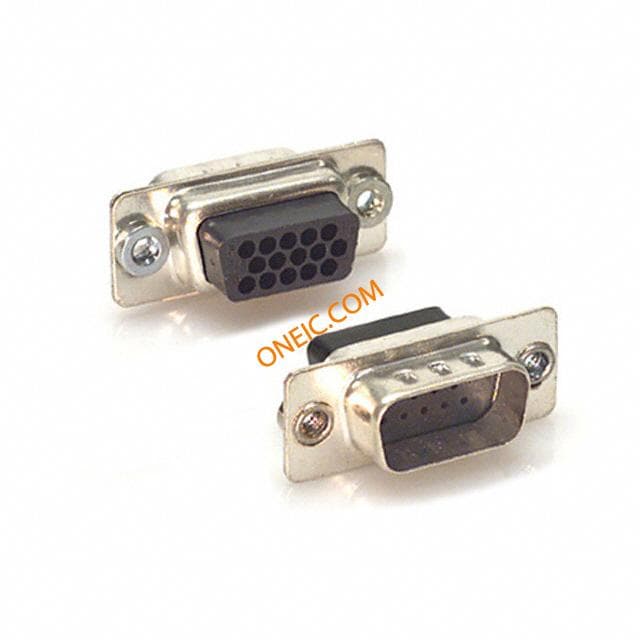

180-015-172-010
Norcomp Inc.
CONN DB15 MALE HD CRIMP TIN

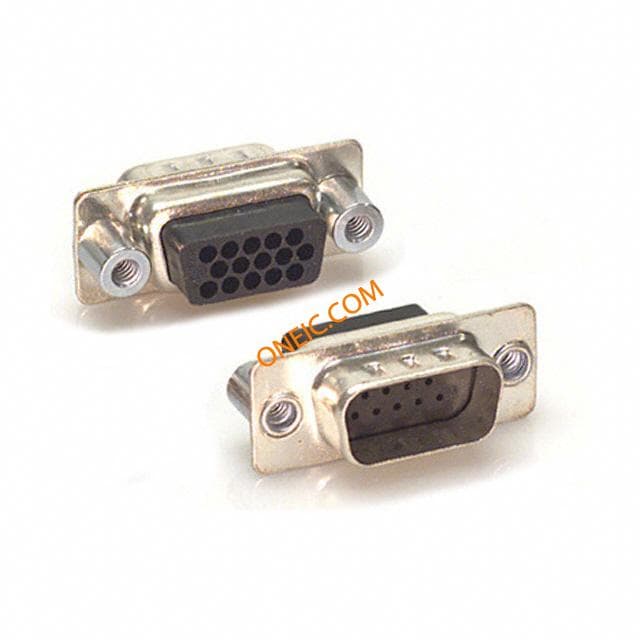

180-015-172-020
