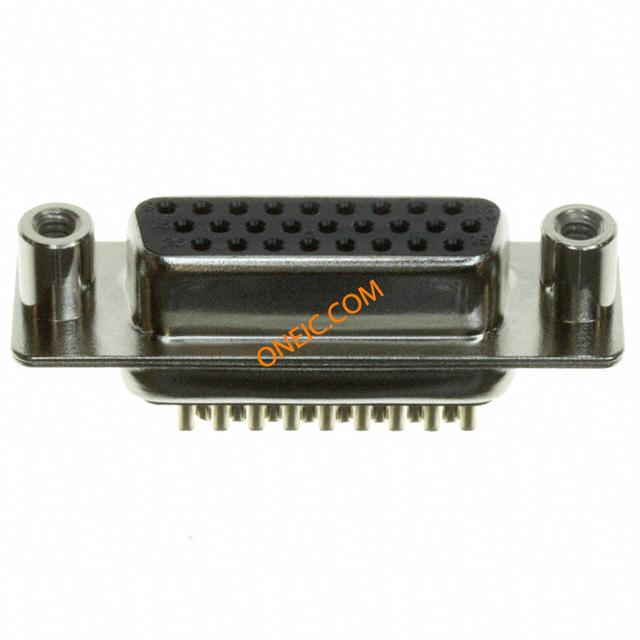

180-026-203L031

点击放大查看

180-026-203L031

Manufacturer
NorComp Inc.
Description
D-Sub High Density Connectors 26P Fem Solder Cup w/ Clinch Nut 3 CONN DB26 FEML HD SLD CUP NICKEL
Category
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub High Density Connectors标准包装数量60
工厂包装数量60

合规参数

RoHSRoHS Compliant

电气参数

额定电压500 VAC最大额定电流2 A

机械参数

包装方式Tray端接方式Solder Cup
触头类型Signal安装类型Free Hanging (In-Line); Panel Mount
外壳镀层Nickel连接器类型Receptacle, Female Sockets
接触镀层Gold法兰特征Mating Side (4-40)
安装样式Wire排数3
连接器样式D-Sub, High Density壳体材料Polybutylene Terephthalate (PBT), Glass Filled
端接样式Solder触点数26
位数26外壳材料及表面处理Steel, Nickel Plated
接触镀层厚度Flash外壳尺寸，连接器布局2 (DA, A) High Density

产品信息

连接器性别Female系列180
产品特性Shielded

环境参数

工作温度-50°C ~ 100°C

Documents & Media

Archive
180-026-20(2,3)Lxx1.stp
PDF Document
180-yyy-20yLyy1
PDF Document
Backshell Reference Guide
PDF Document
180-YYY-20YLYY1.pdf
