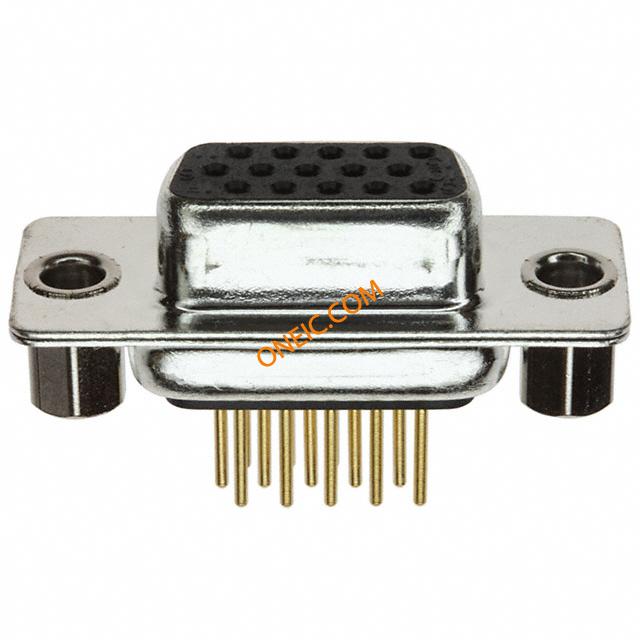

180-M15-213R021
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 36 | Factory Pack Quantity | 36 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Contact Material | Brass |
| Housing Material | Polyamide (PA6T), Nylon 6T | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Female | Features | Shielded |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- 180-M15-213.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
