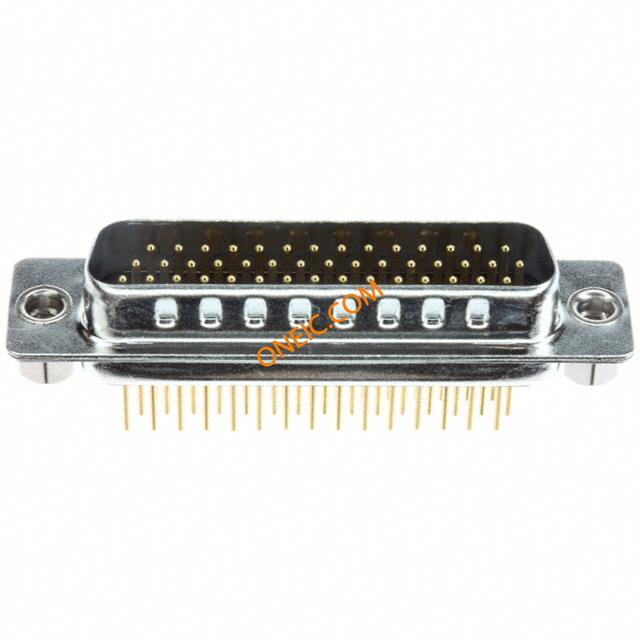

180-M44-113R021
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub High Density Connectors |
| Standard Package | 20 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 44 |
| Insulation Material | Polyamide | Number of Positions | 44 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) High Density | ||
Product Info
| Gender | Male | Features | Grounding Indents, Shielded |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
