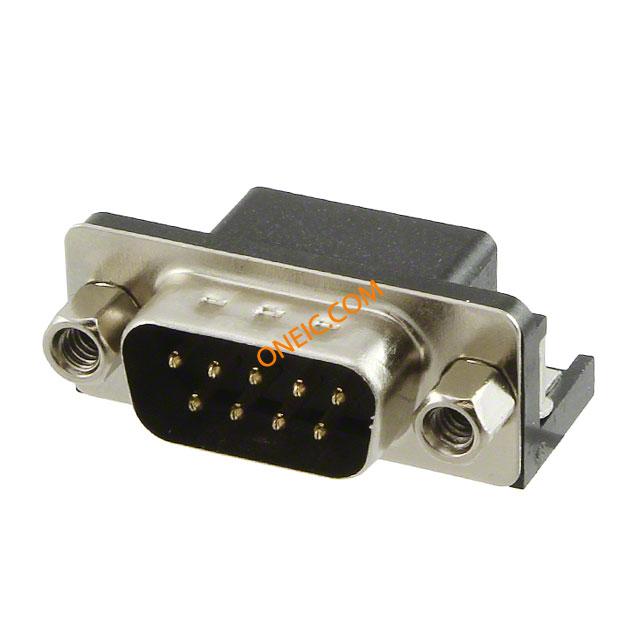

182-009-113R561
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q3618578 | Product Category | D-Sub Standard Connectors |
| Standard Package | 90 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - 182 Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Pitch | 2.77 mm |
| Weight | 0.0085 | Packaging | Tray |
| Shell Size | :DE | Termination | Solder |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Brass | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polyamide (PA9T), Nylon 9T |
| Termination Style | Solder | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Male | Series | :182 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 182-009-113Ryy1.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
