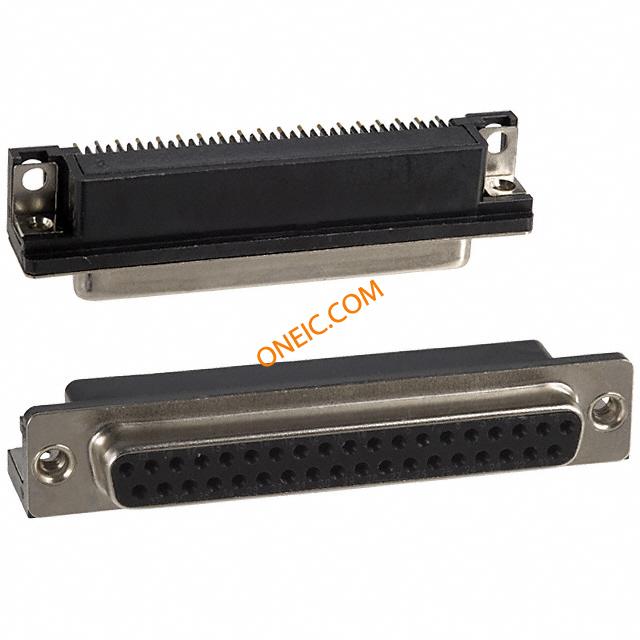

182-037-213R171
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P Fem R/A ground straps 4-40 inserts CONN DB37 FEMAL .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 37WAY |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - 182 Series | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 重量 | 0.0189 |
| 包装方式 | Tray | 外壳尺寸 | :DC |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Right | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | D-Sub |
| 本体材料 | :Steel | 壳体材料 | Polyamide (PA9T), Nylon 9T |
| 端接样式 | Solder | 触点数 | 37 |
| 接触件端接 | :Solder | 位数 | 37 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 连接器性别 | Female | 系列 | 182 |
| 产品特性 | Ground Strap | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
