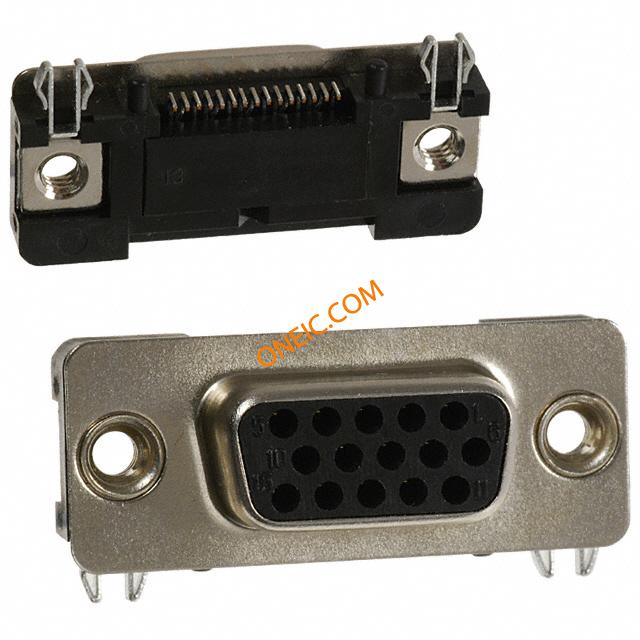

200-015-263R001
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 15 |
| Factory Pack Quantity | 15 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - 200 Series | Voltage Rating | 300 VDC |
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Weight | 0.0052 |
| Packaging | Tube | Shell Size | :DA |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Surface Mount, Right Angle | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Tin |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | SMD/SMT |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Female | Series | 200 |
| Features | Board Lock, Shielded | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
