点击放大查看

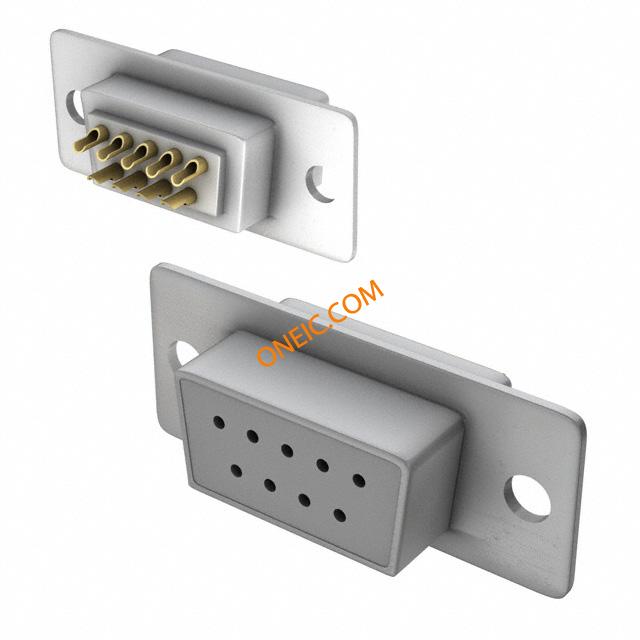

772-E09-203R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE IP67 SOLDER CUP CONN DB-9POS FEMALE SLD CUP IP67 DSUB, SOCKET, IP67, SOLDER, 9WAY |
| Category |
商业参数
| 商标名 | SEAL-D | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - Seal D Series | 最大额定电流 | 5 A |
机械参数
| 颜色 | White | 重量 | 0.006 |
| 包装方式 | Tray | 外壳尺寸 | :DE |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Vertical | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 连接器样式 | D-Sub |
| 本体材料 | :Steel | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Solder | 触点数 | 9 |
| 接触件端接 | :Solder | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Female | 系列 | :772 |
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -50°C ~ 100°C | ||
Documents & Media
相关型号
772-E09-113R001
NorComp
D-Sub Standard Connectors 9P MALE IP67 VERTICAL DIP SOLDER CONN DB-9POS MALE VERT IP67 DSUB, PLUG, IP67, THT, 9WAY
SF6709
NorComp
D-Sub Tools & Hardware 9P SEALING FLANGE IP67 REMOVABLE CONN D-SUB 9POS HD SEALING FLNG SEALING FLANGE, DSUB, 9WAY
SFP67SS09
NorComp
D-Sub Tools & Hardware IP67,9P PERM SINGLE SIDED SEALING FLANGE IP67 SEAL FLANGE 9POS SGL SIDED SEALING FLANGE, DSUB, SINGLE, 9WAY
772-E09-103R011
NorComp
D-Sub Standard Connectors IP67,9P M SCUP NI W/CLINCH NUT 1 CONN DB-9POS MALE SLD CUP IP67
773-E09-113R011
NorComp
D-Sub Standard Connectors IP67 9P MALE CONN R/A .283 W/CLCH NUT CONN DB-9POS MALE R/A .283" IP67
774-E09-113R001
NorComp
D-Sub Standard Connectors IP67 9P MALE CONN R/A .370 FP CONN DB-9POS MALE R/A .370" IP67 DSUB, PLUG, IP67, THT, 9WAY

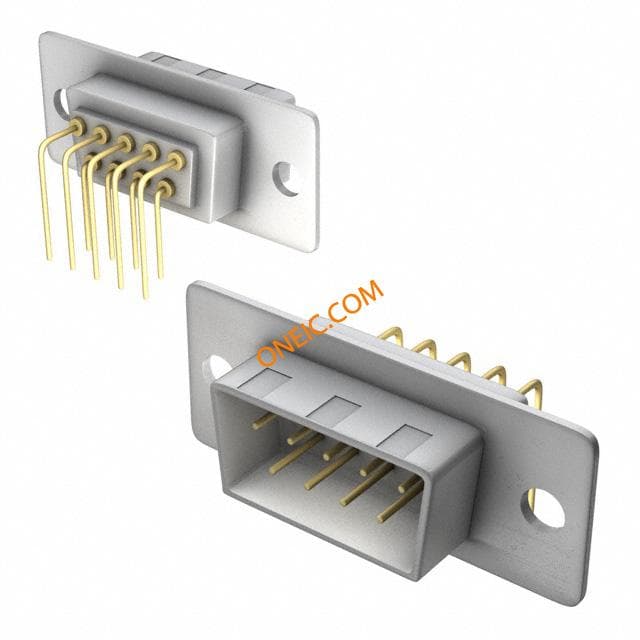

773-E09-113R001
