点击放大查看

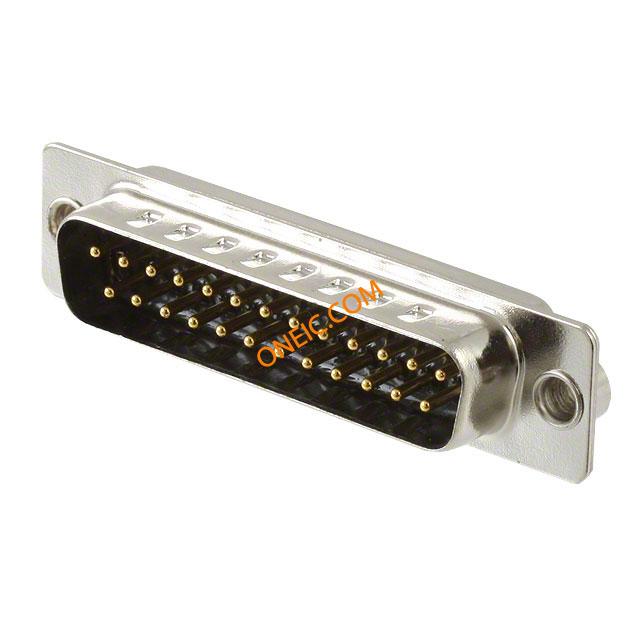

772-E25-103R011
| Manufacturer | |
| Description | D-Sub Standard Connectors IP67,25P M SCUP NI W/CLINCH NUT 1 CONN DB-25POS MALE SLD CUP IP67 |
| Category |
商业参数
| 商标名 | SEAL-D | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 5 A |
机械参数
| 颜色 | White | 高度 | 0.189 in |
| 包装方式 | Tray | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Vertical |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Board Side (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Solder | 触点数 | 25 |
| 位数 | 25 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 连接器性别 | Male | 系列 | 772 |
| 产品特性 | Grounding Indents | ||
环境参数
| 密封等级 | IP 67 | 机械寿命 | New Technology: Cutting edge technology for the newest designs. |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | - 50 C to + 100 C |
