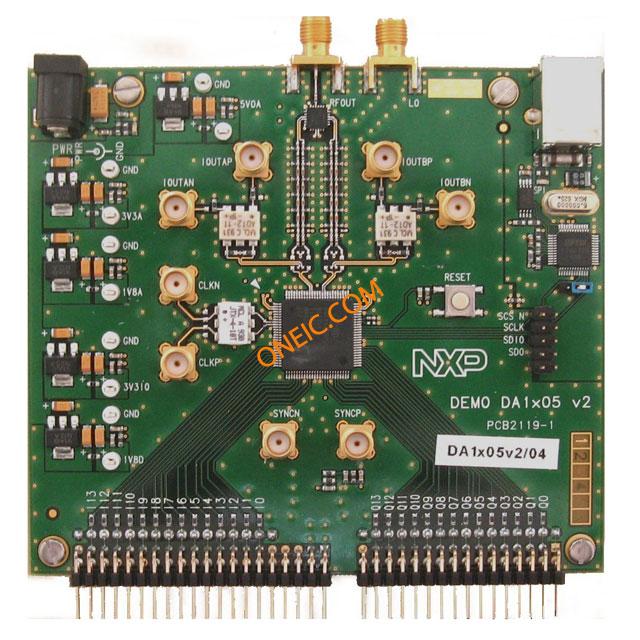

DAC1405D750/DB,598
| Manufacturer | |
| Description | Data Conversion IC Development Tools DAC1405 Dev Board DAC Demo Board For Evaluations From Low To High Output Frequency BOARD DEMO FOR DAC1405D750 |
| Category |
商业参数
| 产品 | Demonstration Boards | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| DAC类型 | Current | 接口 | Parallel |
| 建立时间 | 20ns | 数据接口 | Serial JESD204A, SPI™ |
| 位数 | 14 | DAC数量 | 2 |
| 供电电压 | 1.8 V to 7.5 V | 采样率（每秒） | 750M |
产品信息
| 类型 | DAC | 内容 | Board |
| 工具类型/特性 | DAC1405 | 使用的IC/零件 | DAC1405D750 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
