P89LPC932A1FHN,151
| Category |
对参数有疑问?问 AI 助手
Business
| Tradename | LPC | Part # Aliases | P89LPC932A1FHN-S |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | 490 |
| Factory Pack Quantity | 490 | Standard Package Name | QFN |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | No | ||
Electrical
| Speed | 18MHz | RAM Size | 768byte |
| Core Size | 8-Bit | Core Type | 80C51 |
| Interface | I2C, SPI, UART | Clock Rate | 18 MHz |
| Memory Size | 768 B | Number of I/O | 26 |
| Voltage Rating | 2.4 | Oscillator Type | Internal |
| Serial Protocol | 1 | Voltage - Supply | 2.4 V to 3.6 V |
| Program Memory Size | 8 KB | Program Memory Type | Flash |
| Voltage - Supply (Min) | 3.6 | Voltage - Supply (Vcc/Vdd) | 2.4 V ~ 3.6 V |
Mechanical
| Width | 6.1(Max) | Packaging | Tray |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | SOT-788-1 |
| Length - Overall | 6.1(Max) | Package Quantity | HVQFN EP |
| Number of Positions | 28 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 28-HVQFN (6x6) | Number of Cores/Bus Width | 8 bit |
Product Info
| SPI | 1 | Series | P89LPC9x |
| Protocol | 1 | On-Chip RAM | No |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT | Architecture | CISC |
| Connectivity | I²C, SPI, UART/USART | Core Processor | 8051 |
| Number of Timers | 2 | RF Family/Standard | 89LP |
| DigiKey Programmable | Yes | Printed Circuit Board | 28 |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
Similar Parts

MCB900
nxp semiconductors
Details

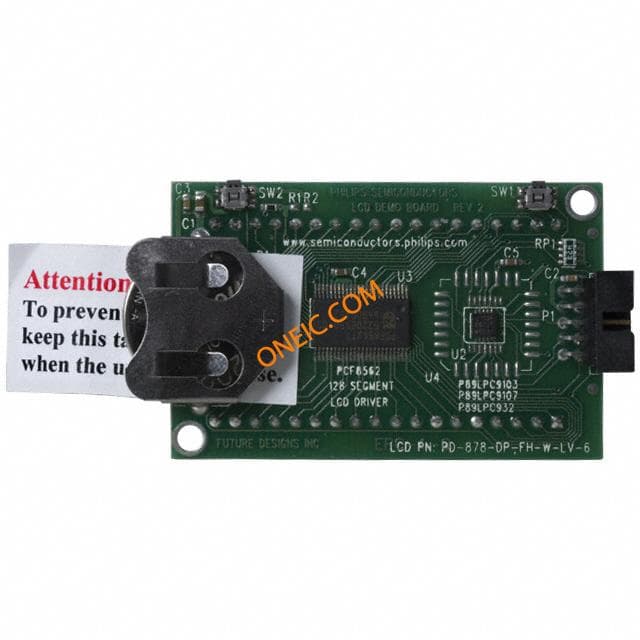

LCD-DEMO-KIT
future designs, inc.
$333.2000
Details

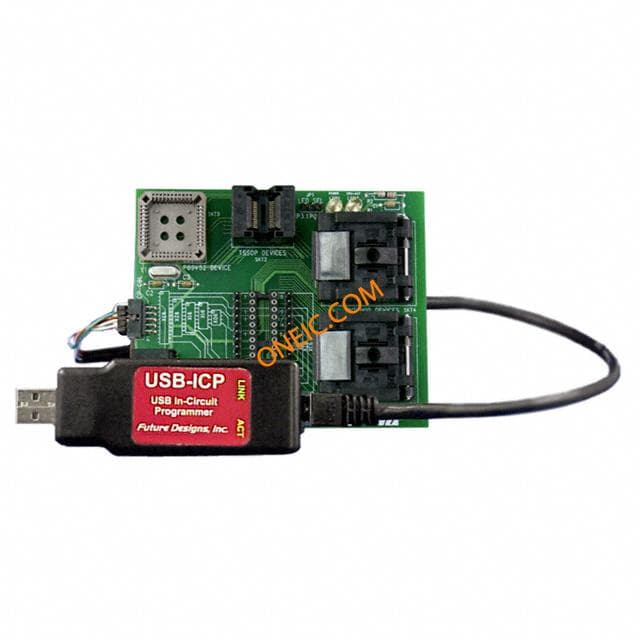

USB-ICP-SAB9
future designs, inc.
$1013.2000
Details

OM6270,598
NXP Semiconductors
$1578.3052
Details

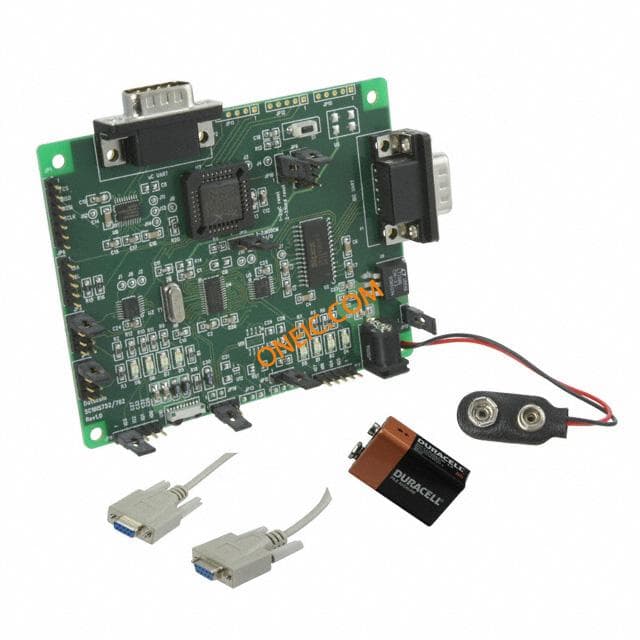

OM6273,598
NXP Semiconductors
$836.8080
Details

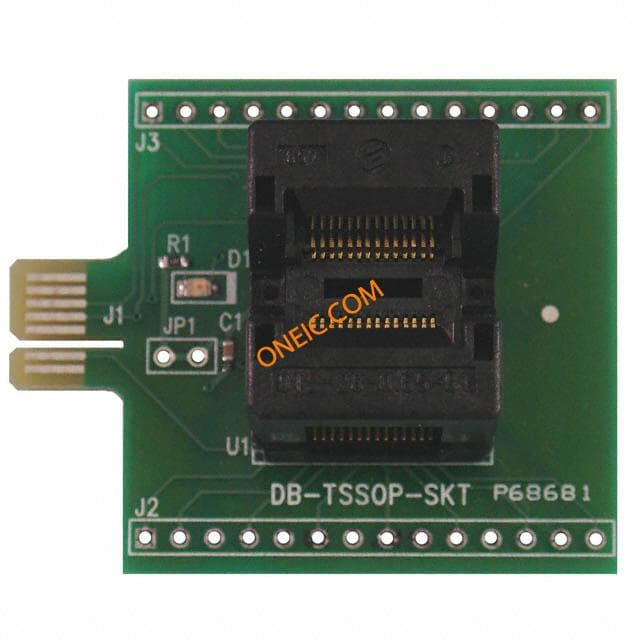

DB-TSSOP-SKT
future designs, inc.
Details

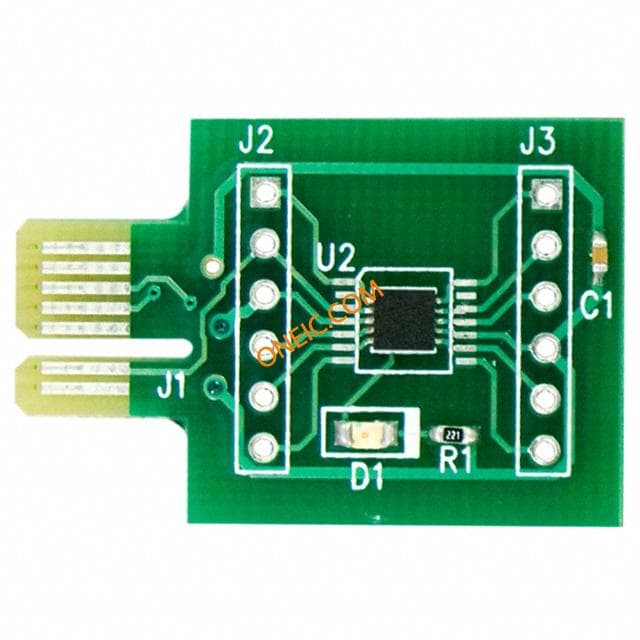

DB-HVSON10-LPC9103
future designs, inc.
$44.2000
Details
OM6292
NXP Semiconductors
$483.1400
Details
DB-TSSOP-LPC932
Future Designs Inc
$40.8000
Details

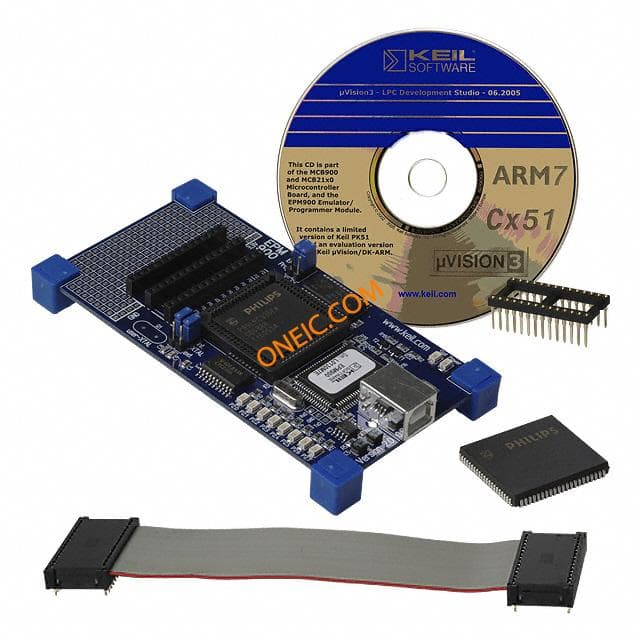

EPM900
