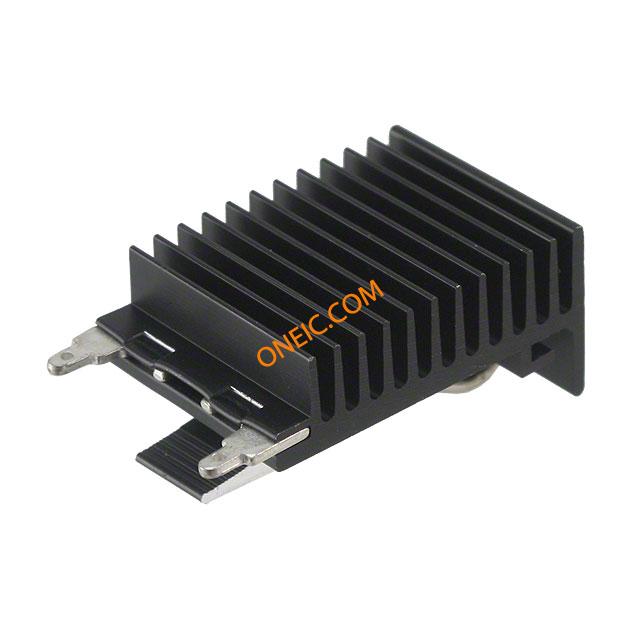

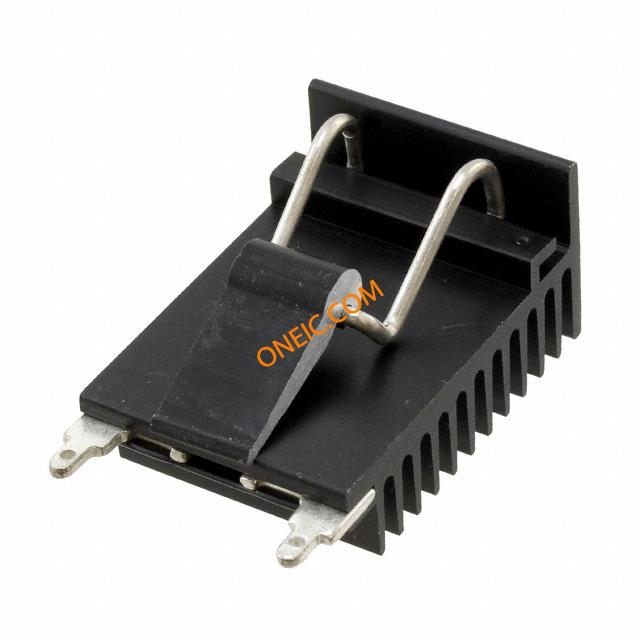

C220-025-1AE
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | C2200251AE | Subcategory | Not Specified |
| Product Category | Heat Sinks | Standard Package | 5 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Shape | Rectangular | Width | 18 mm |
| Finish | Black Anodized | Height | 38 mm |
| Length | 25 mm | Weight | 0.015 |
| Material | Aluminum | Packaging | Bulk |
| Surface Type | 11 in2 | Mounting Style | Through Hole |
| Package Cooled | TO-220 | Width (Inches) | :0.785" |
| Height (Inches) | :1.5" | Material Finish | Black Anodized |
| Width - Overall | :19.94mm | Length - Overall | :0.984" |
| Primary Material | TO-220 | Size / Dimension | 25 L x 38 W x 19.94 H in. |
| Attachment Method | Clip and PC Pin | Heat Sink Material | Aluminum Alloy |
| Height - Seated (Max) | 0.710" (18.03mm) | Shell Size - Insert (Convert From) | :38mm |
Product Info
| Type | Board Level, Vertical | Features | With an Integrated Camming Clip, Maximum Repeatability Constant Spring Force over Repeated Assembly or Disassembly, Maximum Reliability Resilient Spring Action, Design Flexibility Maximum Flexibility for Dynamic Device Locations and Power Upgrading |
| Application | TO-247 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Mechanical Life | New At Mouser |
| Thermal Resistance | :- | ||
Documents & Media
Sourcing & traceability
- Datasheet
- C Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
