D12K7K5
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 12watt 7.5K 10% Tubular Ceramic RESISTOR POWER ADJ 7.5K OHM 12W Wirewound Resistors 12watt 7.5K 10% Tubular Ceramic |
| Category |
商业参数
| 产品 | Power Resistors Wirewound Vitreous Enamel | 交货时间 | 56 Days |
| 商标名 | Dividohm | 子类别 | Resistor Fixed Single-Other Mounting |
| 产品类别 | Wirewound Resistors | 标准包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 容差 | ±10% | 电阻 | 7.5 kOhms |
| 功率（瓦） | 12W | 额定功率 | 12 W |
| 额定电压 | 565 V | 电阻值（欧姆） | 7.5k |
机械参数
| 长度 | 1.750" (44.45mm) | 直径 | 0.313" OD, 0.187" ID (7.94mm x 4.76mm) |
| 包装方式 | Bulk | 端接方式 | Solder Lug |
| 安装类型 | Chassis Mount | 封装形式 | Cylinder, Tube |
| 端接样式 | Solder Lug | ||
产品信息
| 类型 | Vitreous Enamel Adjustable Power | 系列 | 210 |
| 调节方式 | Slide | 适用产品/相关产品 | D12K7K5E |
环境参数
| 工作温度 | + 25 C to + 350 C | 温度系数 | 260 PPM / C |
Documents & Media
相关型号

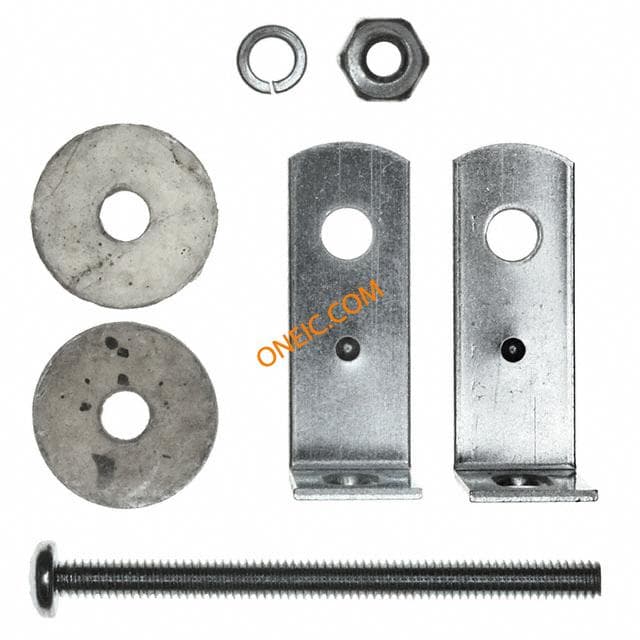

6120D-1 3-4
Ohmite
Resistor Hardware Mounting Bracket MOUNTING HDWR BRACKET ELONGATED Mounting Hardware Resistor Mtg Bracket
7PA10E
Ohmite
Resistor Hardware THRU-BOLT HARDWARE 12W MOUNTING HDWE THRU BOLT 2.5" THRU-BOLT, 200/210/270 RESISTOR
5SE-10
Ohmite
Resistor Hardware RES MOUNTING BKT MTG.BRACKETS D77150-2 PK OF 10 Resistor, Mounting Clip, Spring
5S-10
Ohmite
Resistor Hardware RES MOUNTING BKT MTG.BRACKETS D77150-2 PK OF 10
7PA10
Ohmite
Resistor Hardware THRU-BOLT HARDWARE 12W MOUNTING HDWE THRU BOLT 2.5" Thru-Bolts And Mounting Brackets

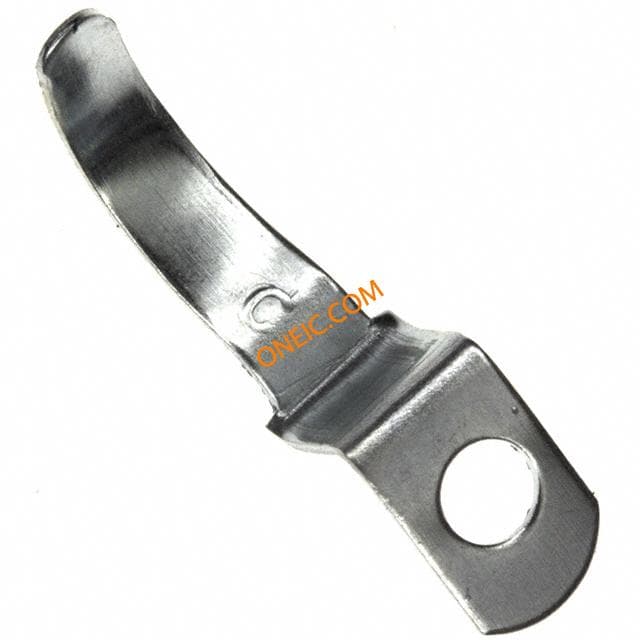

5-100
