L225J1K0E

Manufacturer	Ohmite Manufacturing Company
Description	Wirewound Resistors - Chassis Mount 225watt 1K 5% RES CHAS MNT 1K OHM 5% 225W Resistor;Wirewound;Res 1 Kilohms;Pwr-Rtg 225 W;Tol 5%;Lug;Tubular Wirewound Resistors 225watt 1K 5% Res Wirewound 1K Ohm 5% 225W ±260ppm/°C Ceramic Silicon RDL Lug Bolt-On RESISTOR, POWER, 1KOHM, 225W, 5% Resistor; Wirewound; Res 1 Kilohms; Pwr-Rtg 225 W; Tol 5%; Lug; Vitreous Enamel
Category	Resistors and PotentiometersChassis Mount ResistorsChassis Mount Resistors

对参数有疑问？问 AI 助手

Business

Product	Power Resistors Wirewound Vitreous Enamel	Product Category	Wirewound Resistors
Standard Package	1

Compliance

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85332100

Electrical

Tolerance	±5%	Resistance	1 kOhms
Range deg/s	:OHMITE - L225 Series	Power (Watts)	225W
Power - Rated	225 W	Voltage Rating	4.595 kV
Resistance (Ohms)	1k	Power - Peak Pulse	225 W
Resistance Tolerance	:± 5%	Resistor - Base (R1)	:Wirewound

Mechanical

Weight	0.318	Diameter	28.6 mm
Base Type	:Panel	Packaging	Bulk
Lead Style	Solder Lugs	Termination	Lug
Package / Case	Radial, Tubular	Package Cooled	Vitreous Enamel
Material - Core	Wirewound	Mounting Feature	Brackets (not included)
Size / Dimension	1.126" Dia x 10.500" L (28.60mm x 266.70mm)	Termination Style	Solder Lug
Resistive Material	:Wirewound	Coating, Housing Type	Vitreous Enamel Coated

Product Info

Type	Vitreous Enamel Power Wirewound Resistors	Series	270
Features	Flame Retardant Coating	Composition	Wirewound

Environmental

Operating Temperature

+ 25 C to + 350 C

Temperature Coefficient

±260ppm/°C

Documents & Media

PDF Document

270 Series

PDF Document

res_270.pdf

PDF Document

res_270-231448.pdf

Similar Parts

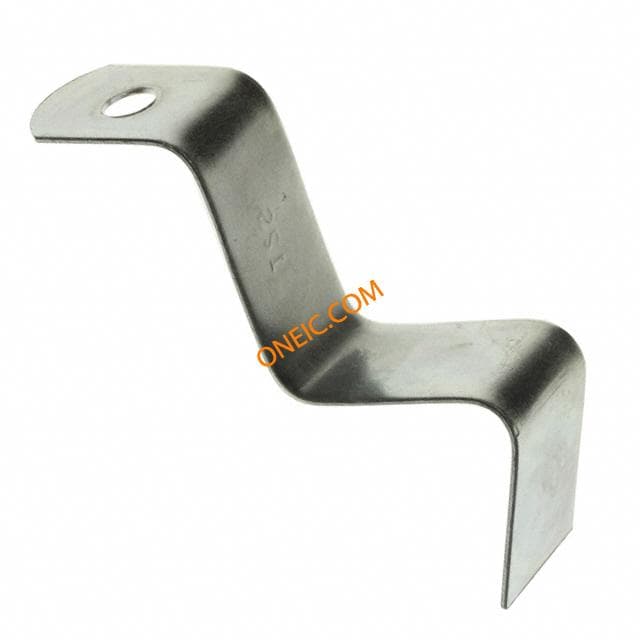

18E-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES Clip; Mounting; Resistor MOUNTING BRACKET, 200/210/270 RES Clip, Mounting, Resistor, Standard Plated Steel

$10.3727

Details

24-6040-0027

Kester

Solder 60/40 .031 DIA. 1LB SPOOL SOLDER RA 60/40 21AWG 1LB SolderWire;highlyactiveRAflux;Sn60Pb40;.031dia;core66;1lb

$375.9094

Details

18-10

Ohmite

Resistor Hardware RES MOUNTING BRACKET MTG.BRACKETS D77182 PACK OF 10

$4.8008

Details

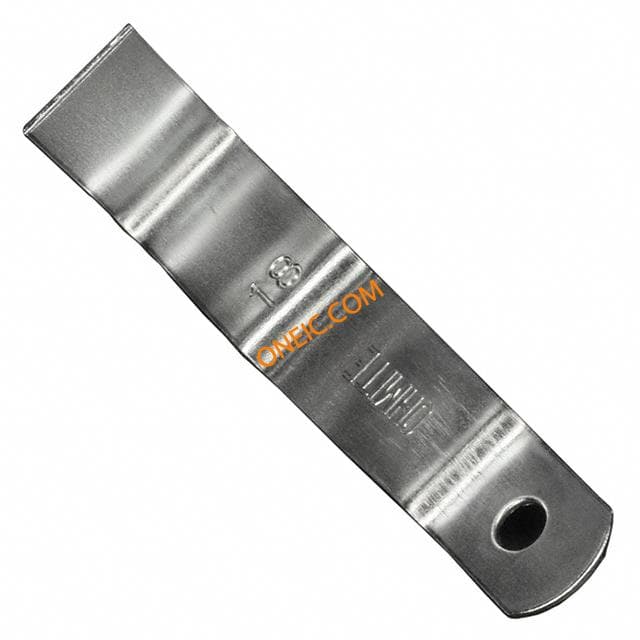

18-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES

$42.2280

Details

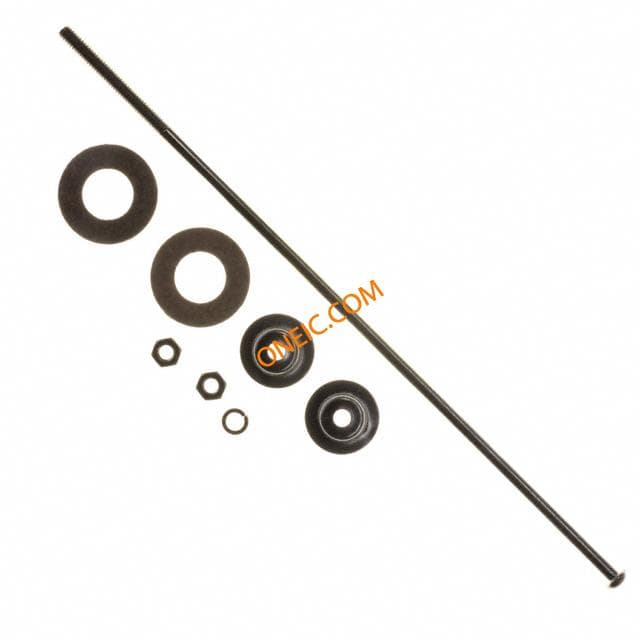

7PA200E

Ohmite

Resistor Hardware THRU-BOLT HARDWARE 225W MOUNTING HDWR THRU BOLT 225WATT Kit; Resistor; Mounting; Thru-Bolt; 11.5in long Thru-Bolts And Mounting Brackets THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Mounting, Thru-Bolt; 11.5In Long

$103.0533

Details

18BE-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

$7.4120

Details

6017E

Ohmite

Resistor Hardware MICA WASHER WASHER, MICA D85804 BAG OF 100 Washer; Mica; Insulating Washers Insulating 0.75in 1.5in WASHER Washer, Mica, Insulating

$10.5090

Details

6003E

Ohmite

Resistor Hardware METAL WASHER WASHER, CNTR D85560 BAG OF 100 CENTERING WASHER, 200/210/270 RES Mounting; 175, 225 W; 0.25 In.; 1.125 In. (Outer), 0.250 In. (Inner)

$6.0520

Details

18S-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

$10.1320

Details

6016E

Ohmite

Resistor Hardware MICA WASHER WASHER, MICA D85843 BAG OF 100

$11.9680

Details

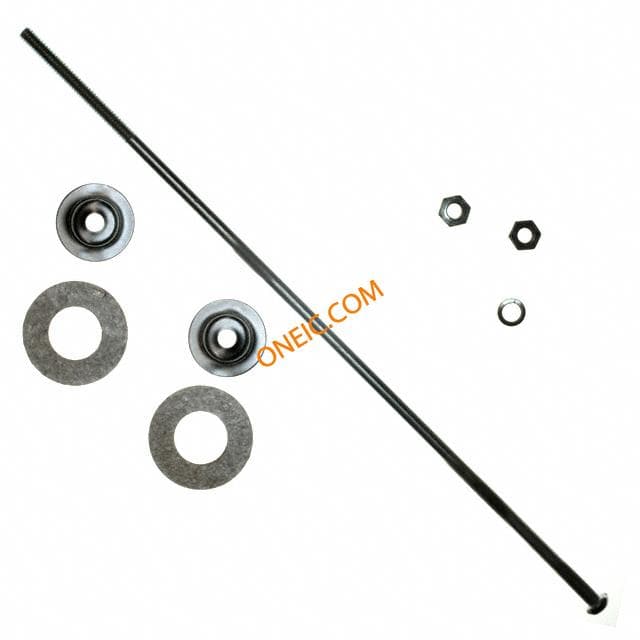

7PA200
