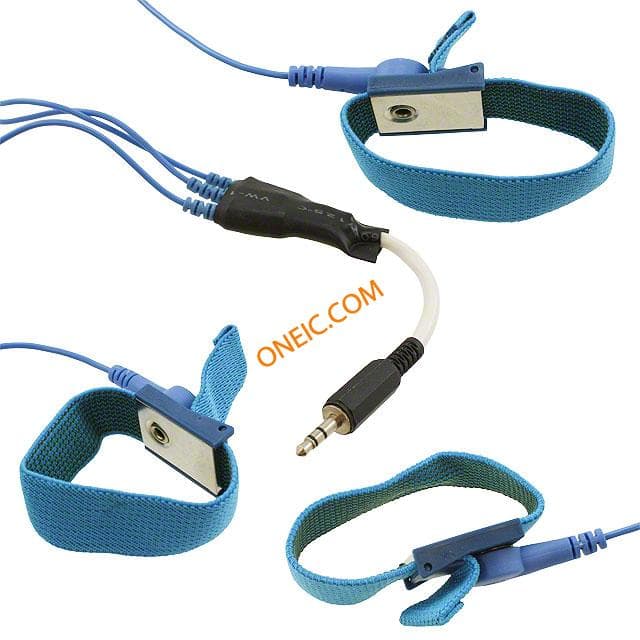

SHIELD-EKG-EMG
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Development Boards | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85423190 |
Electrical
| Core Type | :ARM | Interface | Pass-through Headers |
| Sensor Type | Medical, Electrocardiogram (EKG/ECG) | Number of Bits | :32 bit |
| Voltage - Supply | 3.3 V, 5 V | Number of Elements | :STM32 |
Mechanical
| Weight | 0.05 | Size / Dimension | 2 in x 2 in |
Product Info
| Type | Bio-Feedback Shields | Contents | Board |
| Features | :EMG Shield Which Allow Arduino Like Boards to Capture Electrocardiography Electromiography Signals | Function | The SHIELD-EKG-EMG is an extension module for Olimex's ARDUINO compatible boards |
| Kit Contents | :Board, Cable | Manufacturer | :STM32F1xx |
| Tool Type Feature | Olimex's ARDUINO Boards | Utilized IC / Part | Arduino Type Boards |
| Chipset Manufacturer | :STMicroelectronics | For Use With/Related Products | Olimex's ARDUINO Boards |
Documents & Media
Sourcing & traceability
- Datasheet
- SHIELD-EKG-EMG Manual
