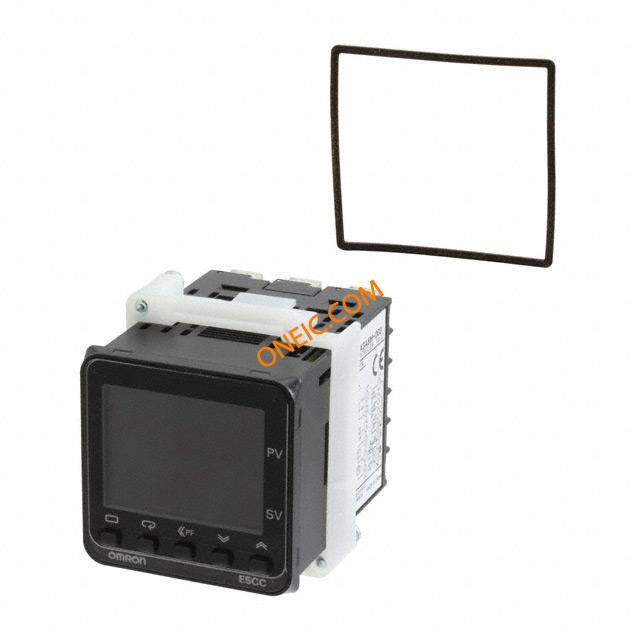

E5CC-RX3D5M-003

Manufacturer	Omron Corporation
Description	1/16DINTEMP CONT, RELAY, HB, 4 On / Off Temperature Controller, 24V ac/dc, -10 to +50°C Controllers 1/16DIN Temp Cont Controller,Temperature,1/16DIN,RelayOutput,HB,4Events Controller; Controlled parameter: temperature; 24VAC; -10÷55°C Omron E5CC 系列 PID 温度控制器 , 48 x 48mm, 24 V 交流/直流, 1输出
Category	传感器与换能器温度调节器温度控制器

对参数有疑问？问 AI 助手

商业参数

其他名称	E5CCRX3D5M003	产品类别	Controllers
标准包装数量	1

合规参数

RoHS

Compliant

电气参数

接口	RS485	输入类型	Digital
输出类型	Control Output	传感器类型	JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U, thermocouple W
显示类型	11-Segment, 4 Digit	输入数量	1
供电电压	24 V ac/dc	输出数量	3
最小输入电压	2PID, ON-OFF	频率（中心/带宽）	temperature

机械参数

尺寸	48 x 48mm	深度	72.1mm
重量	0.1 kg	引脚样式	screw terminals
本体尺寸	48 x 48 x 64mm	安装类型	Bracket
尺寸/外形	48 x 48mm	安装孔直径	45 x 45mm
显示字符高度	7.1mm

产品信息

类型	Digital Temperature Controller	系列	*
产品特性	Easy connections to a PLC with programless communications	功能	heating or cooling control
CAD图纸	3D CAD 模型	显示样式	LCD, LCD
控制方式	ON/OFF, PID Control	测量范围	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
单元数量	1	模块/板类型	controller
可编程特性	keypad

环境参数

工作温度

-10...55°C

Documents & Media

PDF Document

e5ac_controllers.pdf

PDF Document

E5CC,EC,AC,DC
