Business

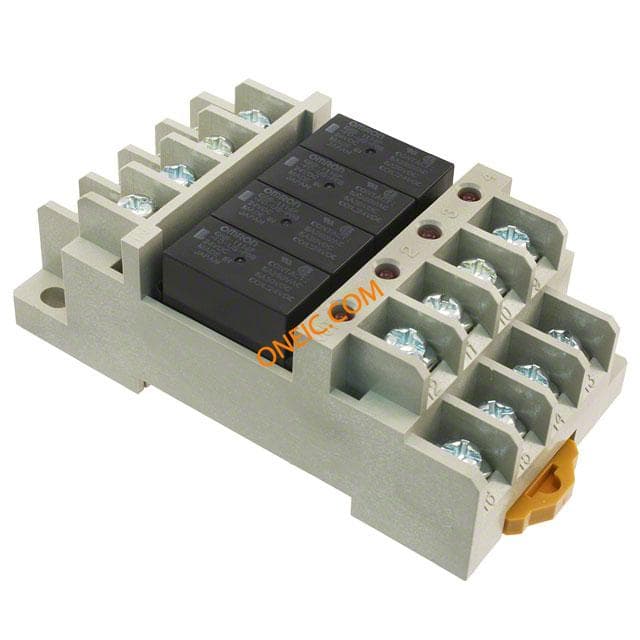

Part # Aliases375173 G6B47BNDDC24NCProduct CategoryGeneral Purpose Relays
Standard Package10Factory Pack Quantity10

Compliance

RoHSRoHS Compliant

Electrical

Current5 AmpsCoil TypeNon Latching
Coil Power200 mWCoil Current10.7mA
Release Time15msCoil Resistance2.88 kOhms
Voltage - Supply24VDCSwitching Voltage380VAC, 125VDC - Max
Vgs(th) (Max) @ Id2.4 VDCPower - Average Forward200 mW
Vce(on) (Max) @ Vge, Ic19.2 VDCContact Rating (Current)5A

Mechanical

Width43 mmHeight28 mm
Length78 mmPackagingBulk
Contact Form4PST (4 Form A)Mounting TypeDIN Rail
Mounting StyleDIN RailTermination StyleScrew Terminal
Contact Layout, Typical4A 4PST-NO

Product Info

TypeTerminal RelaySeriesG6B
FunctionSingle Side StableRelay TypeGeneral Purpose with Socket
Card StandardGeneral Purpose Relay

Environmental

Operate Time10msOperating Temperature-25°C ~ 55°C

Documents & Media

PDF Document
PDF Document
PDF Document

Sourcing & traceability

Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
