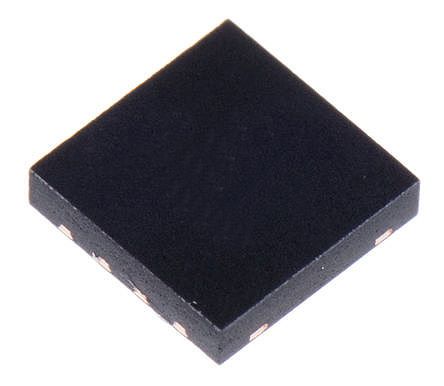

CAT4004AHU2-GT3
| Manufacturer | |
| Description | LED DRVR 4Segment 2.5V/3.3V/5V 8-Pin UDFN T/R LED Lighting Drivers LED DR 4 CH EZ DIM I/F LED DRVR 4Segment 2.5V/3.3V/5V 8-Pin UDFN EP T/R IC LED DRIVER 4CH 8UDFN Driver,LED,4-channel,EZDim,UDFN8 LED DRIVER, 4CH, 8DFN LED 驱动器, 4 V, 8引脚 UDFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CAT4004AHU2-GT3OSCT | Standard Package | Tape & Reel |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | ||
Electrical
| Dimming | :Digital | Accuracy | ±1% |
| Voltage Rating | 2.4 V to 5.5 V | Current - Output | :40mA |
| Current - Supply | 40 mA | Voltage - Supply | 2.4 to 5.5 V |
| Number of Outputs | 4 | Voltage - Input (Min) | :2.4V |
| Number of SCRs, Diodes | 4 | Voltage - Supply (Min) | 2.5|3.3|5 |
| Resistor Matching Ratio | +5% | Constant Current Load - Max | Yes |
| Voltage - Continuous Operating (Max) (MCOV) | :5.5V | ||
Mechanical
| Width | 2.1mm | Height | 0.5mm |
| Length | 2.1mm | Weight | 0.000033 |
| Packaging | Reel | Case Color | :DFN |
| Mounting Type | Surface Mount | Conductor Type | No Lead |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8UDFN | Package Cooled | DFN |
| Material Finish | :- | Length - Overall | 2 |
| Size / Dimension | 2.1 x 2.1 x 0.5mm | Packages Included | UDFN EP |
| Number of Positions | 8 | Shell Size - Insert | 0.48 |
| Supplier Device Package | 8-uDFN (2x2) | ||
Product Info
| Type | Backlight | Topology | Linear (LDO) |
| Base Unit | :4004 | Number of Segments | 4 |
| Internal Connection | Yes | Application Specifics | :Backlighting |
| Printed Circuit Board | 8 | Assembly Configuration | Surface Mount |
Environmental
| Operating Temperature | + 85 C | ||
