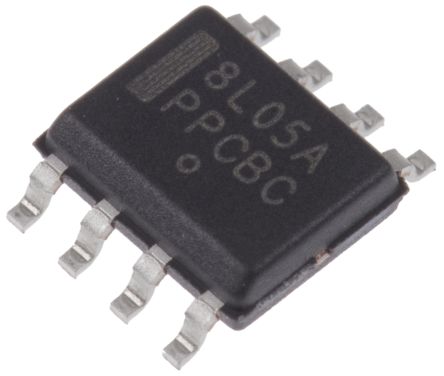

MC78L05ACDG
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MC78L05ACDGOS | Product Category | Voltage Regulators - Standard |
| Standard Package | Rail / Tube | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :78L05 | Rad Hardened | No |
Electrical
| PSRR | 49 dB | Accuracy | :5% |
| Output Type | Fixed | Regulator Type | Linear |
| Voltage Rating | 30 V | Line Regulation | 150 mV |
| Load Regulation | 60 mV | Current - Output | 0.1 A |
| Voltage - Supply | 1.7@40mA V | Number of Outputs | 1 |
| Regulator Topology | Positive Fixed | Number of Regulators | 1 |
| Noise - 0.1Hz to 10Hz | 40μV | Voltage - Input (Min) | 5V |
| Voltage - Output (Max) | :5V | Voltage - Supply (Min) | :5% |
| Input Logic Level - Low | 3.8mA | Voltage - Continuous Operating (Max) (MCOV) | :30V |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.000001 |
| Packaging | Rail | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Material Finish | :- |
| Length - Overall | 5(Max) | Package Quantity | SOIC N |
| Size / Dimension | 5 x 4 x 1.5mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC N |
Product Info
| Spg | 1 | Type | Linear |
| Features | Current Limit|Short Circuit Prote... | Polarity | Positive |
| Topology | Standard | Base Unit | :78 |
| Number of Units | 1 | Utilized IC / Part | :MC78L05ACD |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | 0 to 125 °C | Usable Temperature Range | 0to+125°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
