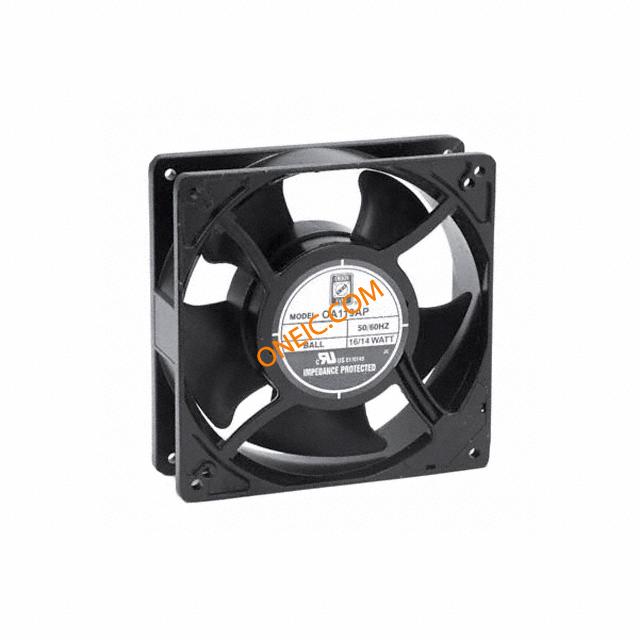

OA119AP-11-1TB
| Manufacturer | |
| Description | Fans Fan 127x38 115VAC Ball Term 130cfm FAN AC 127X38.5MM 115V 130CFM Fan; 5 x 5 in.; 1.5 in.; 115 VAC; 130 CFM (Max.); 12 W; AC; 46 dB; Ball Fans Fan AC 127x38mm 115V Ball 130CFM Terminal Fan;AC;115V;127x127x38mm;Sq;130CFM;14W;46dBA;3000RPM;Terminals |
| Category |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 噪声 | 46 dB | 转速 | 3000 RPM |
| 频率 | 50/60Hz | 功率（瓦） | 14.0W |
| 额定功率 | 12 W | 电压范围 | 80 ~ 130VAC |
| 额定电压 | 115VAC | 供电电压 | 115 V |
机械参数
| RPM | 3000 RPM | 尺寸 | 5x1.5(127x38)In.(mm) |
| 风量 | 130.0 CFM (3.68m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 静压 | 0.240 in H2O (59.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT) | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Square - 127mm L x 127mm H x 38.5mm W |
| 端接样式 | Terminals | 风扇附件类型 | 5x1.5(127x38)In.(mm) |
| 总体尺寸 | 5x5x1.5In. | ||
产品信息
| 类型 | Square | 系列 | OA119 |
| 产品特性 | Tachometer | 功能 | AC |
| 方向 | IntakeoverStruts | 开关类型 | AC |
| 制造商全称 | OA119Series | 配置 | Square |
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 130CFM | 结工作温度 | 80°C |
