OA254AN-11-1TBXC
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 69 dB | Speed | 3000 RPM |
| Frequency | 50/60Hz | Power (Watts) | 75W |
| Power - Rated | 70 W | Voltage Range | 80 ~ 130VAC |
| Voltage Rating | 115VAC | Voltage - Supply | 120 V |
| Current Rating (Max) | 0.7/0.99A | ||
Mechanical
| RPM | 2700 RPM | Size | 10x3.5(254x89)In.(mm) |
| Air Flow | 850.0 CFM (24.07m³/min) | Fan Type | Tubeaxial |
| Material | DiecastAluminum | Termination | 2 Terminals |
| Bearing Type | Ball | Static Pressure | 1.140 in H2O (284.0 Pa) |
| Housing Material | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum | Primary Material | Fans |
| Size / Dimension | Round - 254mm Dia x 89mm W | Termination Style | Terminals |
| Fan Accessory Type | 10x3.5(254x89)In.(mm) | Dimensions - Overall | 10x3.5In. |
Product Info
| Type | Round | Series | OA254AN |
| Function | AC | Switch Type | AC |
| Manufacturer | OA254XCSeries | Configuration | Round |
Environmental
| Rated Life | 60000 hrs @ 40°C | Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Thermal Resistance @ Natural | 850CFM | Operating Temperature - Junction | 80°C |
Documents & Media
PDF Document
Similar Parts
C45-24P
Orion Fans
$27.6461
Details
C180-36
Orion Fans
$13.8400
Details
C45-12
Orion Fans
$9.8600
Details
C45-24
Orion Fans
$18.5599
Details
C45-144P
Orion Fans
$48.8852
Details
C45-6DC
Orion Fans
$27.2000
Details
C45-3DC
Orion Fans
$25.5959
Details
C90-144P
Orion Fans
$44.0232
Details
C180-24
Orion Fans
$12.9948
Details
C45-4DC-72P
Orion Fans
$42.4320
Details
C45-9DC
Orion Fans
$46.7160
Details
C45-36
Orion Fans
$9.5880
Details
C45-72P
Orion Fans
$12.6228
Details
C90-12
Orion Fans
$7.2080
Details
C180T-72
Orion Fans
$15.0280
Details
C90-48
Orion Fans
$10.8120
Details

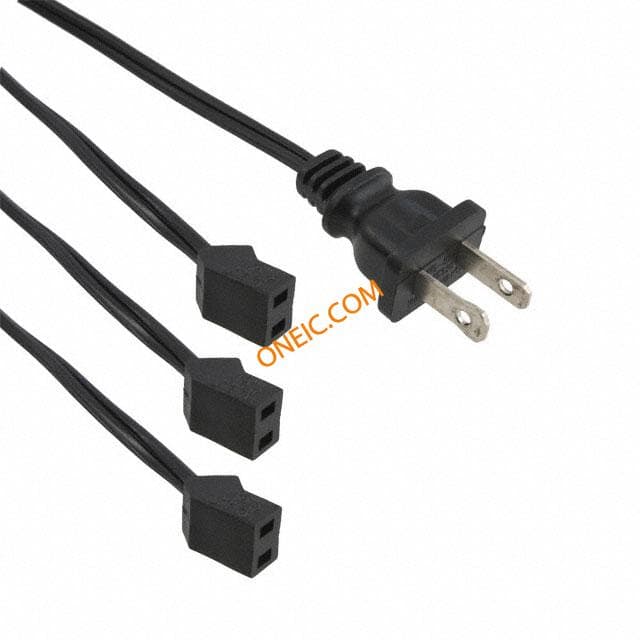

C45-3DC-72P
Orion Fans
$55.9572
Details
C90-36
Orion Fans
$9.5880
Details

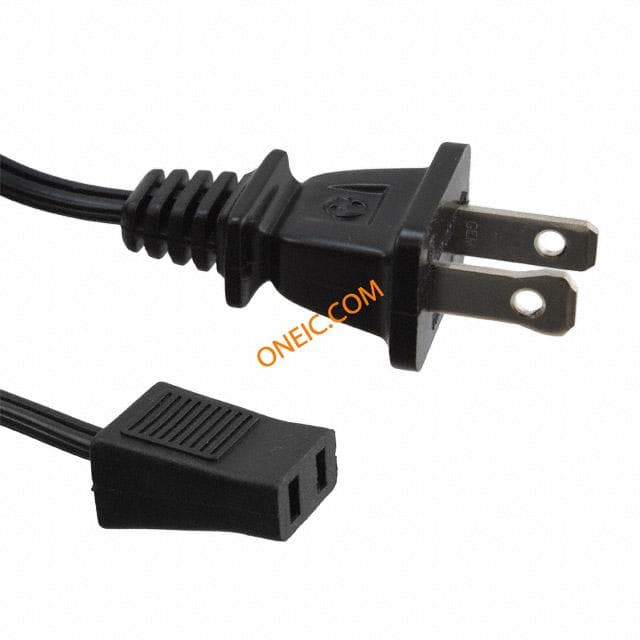

C180-48P
Orion Fans
$20.6856
Details

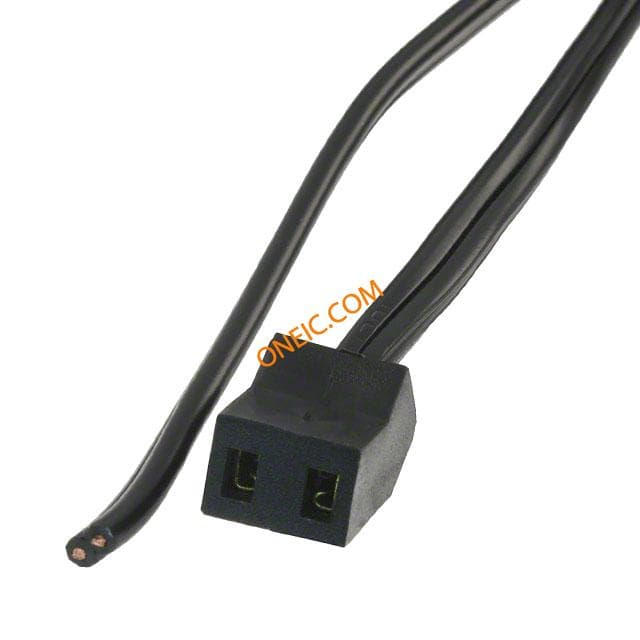

C45-144
