OD1225-12HTB
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Noise | 39 dB | Speed | 3000 RPM |
| Power (Watts) | 5.00W | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Current Rating (Max) | 0.370A |
Mechanical
| RPM | 2200 RPM | Size | 4.7x1(120x25)In.(mm) |
| Air Flow | 89.0 CFM (2.52m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CCW |
| Termination | 2 Terminals | Bearing Type | Ball |
| Static Pressure | 0.140 in H2O (34.9 Pa) | Housing Material | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Primary Material | Fans | Size / Dimension | Square - 120mm L x 120mm H x 25mm W |
| Termination Style | Terminals | Fan Accessory Type | 4.7x1(120x25)In.(mm) |
| Dimensions - Overall | 4.7x4.7x1In. | ||
Product Info
| Type | Square | Series | OD1225 |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | OD1225Series |
| Configuration | Square | ||
Environmental
| Rated Life | 65000 hrs @ 45°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Thermal Resistance @ Natural | 86CFM | Operating Temperature - Junction | 80°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
C180-36
Orion Fans
$13.8400
Details
C45-144P
Orion Fans
$48.8852
Details
C45-6DC
Orion Fans
$27.2000
Details
C45-3DC
Orion Fans
$25.5959
Details
C90-144P
Orion Fans
$44.0232
Details
C90-72
Orion Fans
$28.1112
Details
C180-24
Orion Fans
$12.9948
Details
GRM120-45
Orion Fans
$11.4177
Details

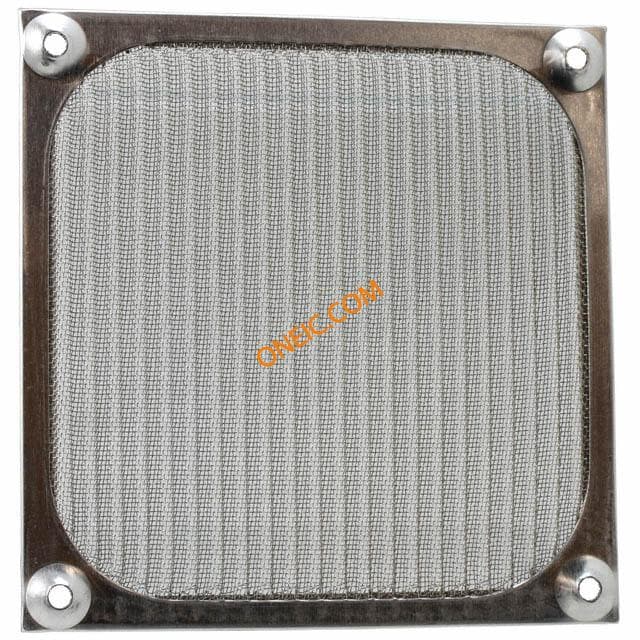

WMG120M
