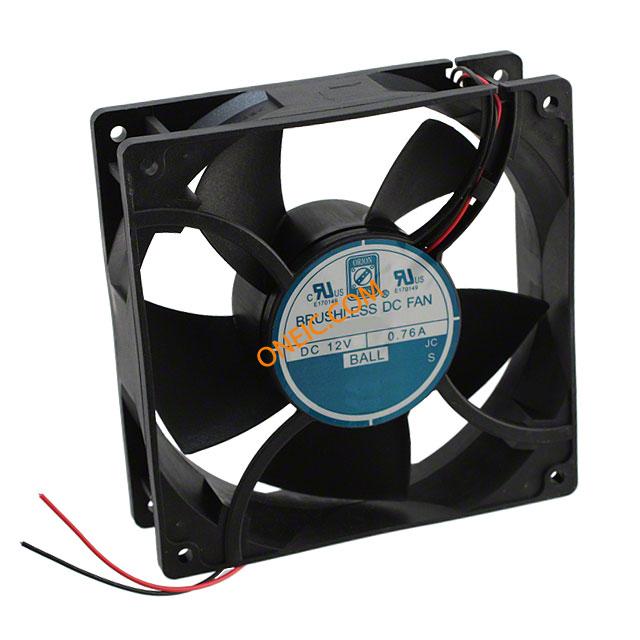

OD127-12HB
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fans | Product Category | Fans |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Noise | 56 dB | Speed | 3500 RPM |
| Power - Rated | 500 mW | Voltage Range | 8 ~ 14VDC |
| Voltage Rating | 12VDC | Voltage - Supply | 12 V |
| Current Rating (Max) | 1.2A | ||
Mechanical
| RPM | 3500 RPM | Size | 5x1.5(127x38)In.(mm) |
| Air Flow | 193.0 CFM (5.46m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CW |
| Termination | 2 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.460 in H2O (114.6 Pa) | Housing Material | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Primary Material | Fans | Size / Dimension | Square - 127mm L x 127mm H x 38.5mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 5x1.5(127x38)In.(mm) |
| Dimensions - Overall | 5x5x1.5In. | ||
Product Info
| Type | Square | Series | OD127AP |
| Features | Tachometer | Function | DC |
| Direction | IntakeoverStruts | Switch Type | DC |
| Manufacturer | OD127Series | Configuration | Square |
Environmental
| Rated Life | 60000 hrs @ 45°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 193CFM | Operating Temperature - Junction | 75°C |
