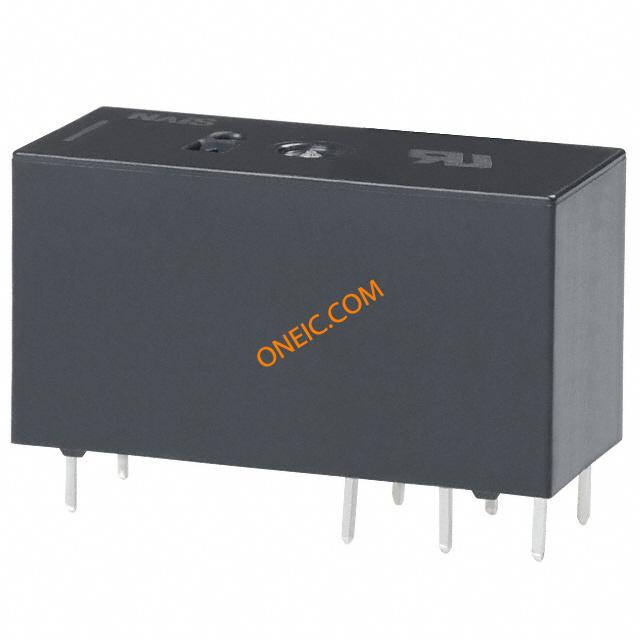

ALZ12F24W
| Manufacturer | |
| Description | General Purpose Relays 1 Form C 16A 24V Sealed Class F Coil RELAY GEN PURPOSE SPDT 16A 24V Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole Power Relay Coil Voltage: 24 VDC Contact Configuration: 1C SPDT Current: 16 Amps Mounting: PC Board Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 16 Amps | 线圈类型 | Non Latching |
| 线圈功率 | 400 mW | 线圈电流 | 16.7mA |
| 释放时间 | 5ms | 线圈电阻 | 1.44 kOhms |
| 供电电压 | 24VDC | 开关电压 | 440VAC - Max |
| Vgs(th)（最大）@ Id | 2.4 VDC | 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC |
| 触点额定电流 | 16A | ||
机械参数
| 包装方式 | Bulk | 绝缘类型 | Class F |
| 触点形式 | SPDT (1 Form C) | 安装类型 | Through Hole |
| 触头材料 | Silver Tin Oxide (AgSnO) | 端接样式 | PC Pin |
| 典型触点布局 | 1C SPDT | ||
产品信息
| 类型 | Relays | 产品特性 | Insulation - Class F, Sealed - Fully |
| 功能 | Single Side Stable | 继电器类型 | General Purpose |
| 卡标准 | Power Relay | ||
环境参数
| 动作时间 | 15ms | 工作温度 | -40°C ~ 105°C |
