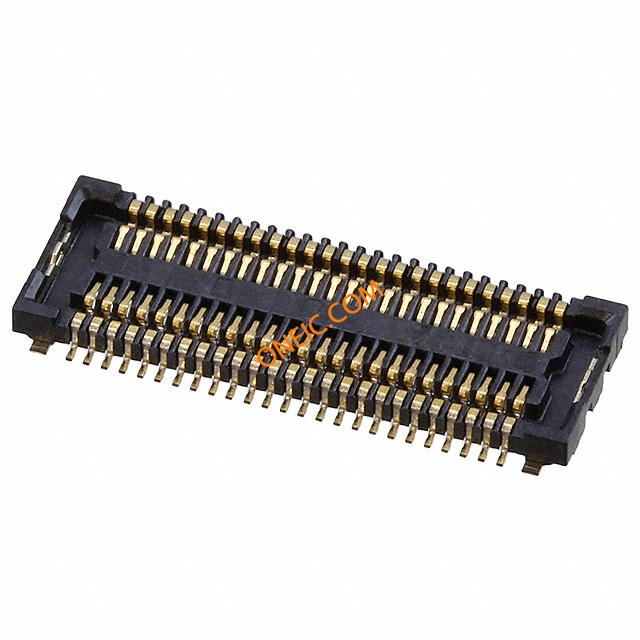

AXK7L50223G
| Manufacturer | |
| Description | Conn Board to Board RCP 50 POS 0.4mm Solder ST SMD Carton CONN SOCKET FPC .4MM 50POS SMD FFC & FPC Connectors CONN SOCKET FPC .4MM 50POS SMD |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 255-3157-2 | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 90 | 最大额定电流 | 0.3/Contact |
| 最小输入电压 | 60VDC|60VAC | ||
机械参数
| 深度 | 4.4 | 间距 | 0.4 mm |
| 高度 | 0.87 | 包装方式 | Carton |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | Socket, Center Strip Contacts | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 12.4 |
| 板面高度 | 0.034" (0.86mm) | 触点数 | 50 |
| 位数 | 50 | 配接堆叠高度 | 0.9mm |
产品信息
| 类型 | Board to Board | 连接器性别 | RCP |
| 产品特性 | Solder Retention | 产品子类型 | Sockets |
