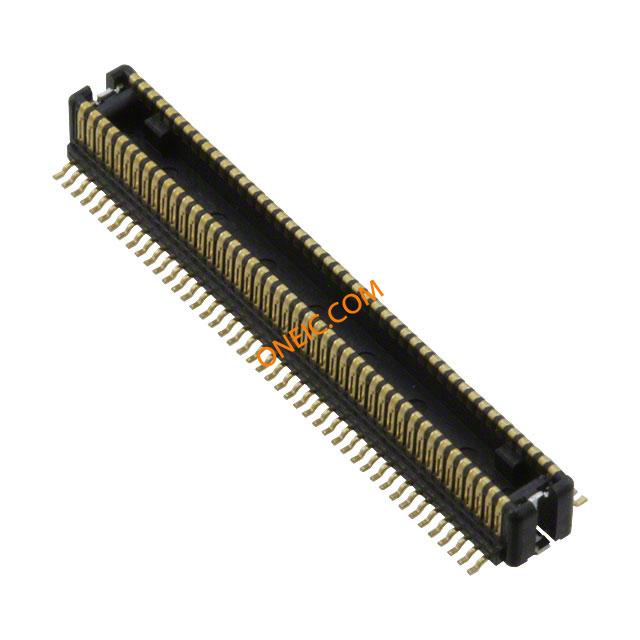

AXK890225WG
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ CONN SOCKET BRD/BRD 90 POS 0.4mm Conn Board to Board HDR 90 POS 0.4mm Solder ST SMD Embossed T/R CONN HEADER FPC .4MM 90POS SMD Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 90 POS 0.4mm |
| Category |
商业参数
| 其他名称 | 255-3343-2 | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 70 mohm | 最大额定电流 | 5 A |
| 最小输入电压 | 60VDC|60VAC | 最小供电电压 | 60VDC/60VAC |
机械参数
| 深度 | 3.12 mm | 间距 | 0.016" (0.40mm) |
| 高度 | 2.26 mm | 包装方式 | Embossed Tape and Reel |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Outer Shroud Contacts |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 19.1 mm |
| 板面高度 | 0.089" (2.26mm) | 触点数 | 90 |
| 位数 | 90 | 安装高度（最大） | 0.089" (2.26mm) |
| 配接堆叠高度 | 3mm, 3.5mm, 4mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | HDR |
| 系列 | P4 | 产品特性 | Solder Retention |
| 主要用途 | Solder Retention | 产品子类型 | Headers |
| 输出配置 | Surface Mount | ||
环境参数
| 插拔次数 | 3mm, 3.5mm, 4mm | 工作温度 | -55C to 85C |
