AXN420130P
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN HEADER 20 POS 0.8mm CONN HEADER .8MM 20POS SMD Conn Fine Pitch Connector HDR 20 POS 0.8mm Solder ST SMD Embossed T/R |
| Category |
商业参数
| 标准包装数量 | 400 | 工厂包装数量 | 400 |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 额定电压 | 60 V | 最大额定电流 | 0.5 A |
机械参数
| 间距 | 0.8 mm | 包装方式 | Reel |
| 安装类型 | Vertical | 连接器类型 | Header, Outer Shroud Contacts |
| 接触镀层 | Gold | 安装样式 | SMD/SMT |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Resin | 端接样式 | SMD |
| 板面高度 | 0.439" (11.14mm) | 触点数 | 20 |
| 位数 | 20 | 配接堆叠高度 | 14mm |
产品信息
| 系列 | P8 | 产品特性 | Board Guide |
| 产品子类型 | Headers | ||
Documents & Media
相关型号
AXN320130P
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD Conn Fine Pitch Connector SKT 20 POS 0.8mm Solder ST SMD Embossed T/R
AXN320038J
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD Conn Fine Pitch Connector SKT 20 POS 0.8mm Solder ST SMD Embossed T/R
AXN320C130P
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD
AXN320038P
Panasonic Electric Works
基板間およびメザニンコネクタ CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm Conn Fine Pitch Connector SKT 20 POS 0.8mm Solder ST SMD Embossed T/R

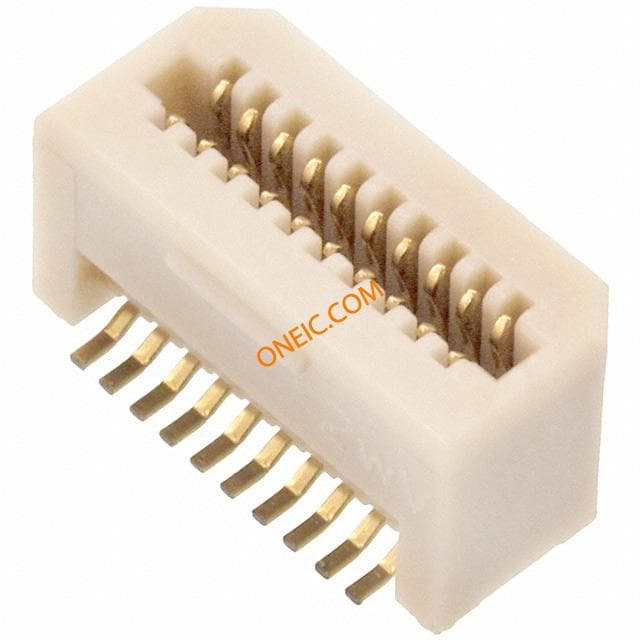

AXN320130S
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD Conn Fine Pitch Connector SKT 20 POS 0.8mm Solder ST SMD Tube
AXN320C038P
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD Conn Fine Pitch Connector SKT 20 POS 0.8mm Solder ST SMD Embossed T/R
AXN320C130S
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET 20 POS 0.8mm CONN SOCKET .8MM 20POS SMD

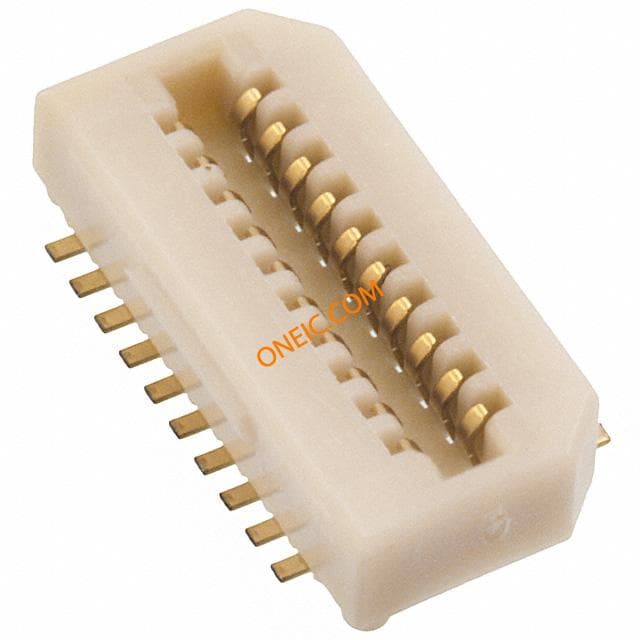

AXN320038S
