DSP2A-PS
| Manufacturer | |
| Description | Relay Sockets & Hardware FOR DSP2A RELAYS Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET PC MNT FOR DSP2A RELAYS RELAY SOCKET, PCB, 8 PIN Socket,Relay;PCBMount;3000V(RMS);5A;1000Megohms(BetweenTerminals) DSP Relay Socket, 2 Form A Relay socket, DSP2A-PS, Panasonic |
| Category |
商业参数
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85364110 |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | :500V | 击穿电压 | 3000V(RMS) |
| 最大额定电流 | 5 A | 绝缘电阻 | 1000 Mohm |
机械参数
| 深度 | 11 mm | 宽度 | 11mm |
| 高度 | 13.3 mm | 长度 | 23mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Straight |
| 端子类型 | :Through Hole | 连接器类型 | :Quick Connect |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 排数 | 2 | 总长度 | 23 mm |
| 端接样式 | Solder Pin | 触点数 | 8 |
| 位数 | 6 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | DSP | 附件类型 | Sockets |
| 适用产品/相关产品 | DSP2A and DSP1 Relays | ||
Documents & Media
相关型号

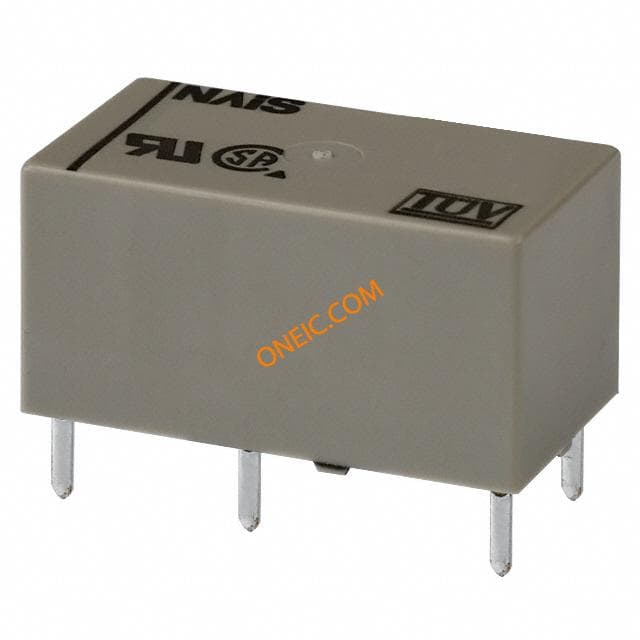

DSP1-DC24V-F
