点击放大查看

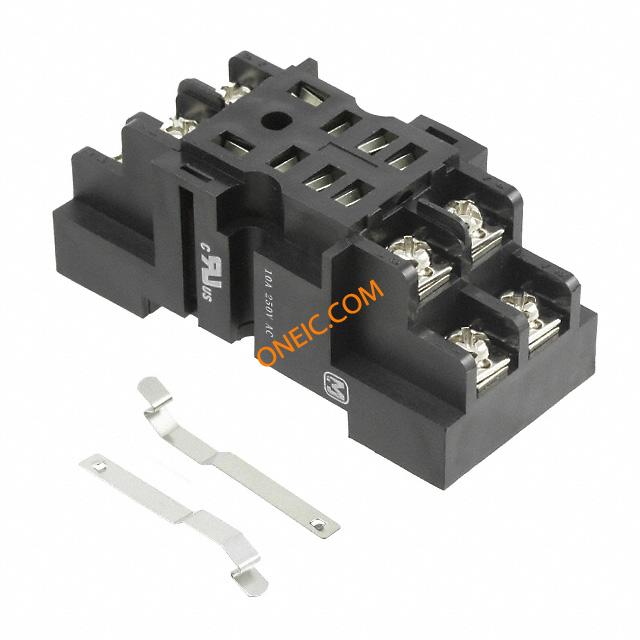

HL2-SFD-K
| Manufacturer | |
| Description | Relay Sockets & Hardware FOR HL2 RELAYS SCREW DIN Conn Relay Socket SKT 8 POS Screw ST Panel Mount SOCKET TERM SCREW DIN HL2 RELAY RELAY SOCKET*, DIN RAIL MOUNT WITH HOLD DOWN SPRING Space Saving HL Series Power Relay |
| Category |
商业参数
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
电气参数
| 绝缘电阻 | 100 | ||
机械参数
| 深度 | 28.6 | 高度 | 30 |
| 包装方式 | Bulk | 端接方式 | Screw |
| 安装类型 | Panel Mount | 端接样式 | Screw |
| 触点数 | 8 | 位数 | 8 |
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | HL2 | 产品特性 | Mounting Hardware |
| 附件类型 | Sockets | 适用产品/相关产品 | HL2 Relays |
Documents & Media
相关型号
HL2-H-AC115V-F
Panasonic Electric Works
General Purpose Relays HL1 Relay (Plug-in) RELAY RELAY GEN PURPOSE DPDT 10A 115V General Purpose Relay Coil Voltage: 110-120 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-AC120V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 12VAC PLUG-IN RELAY GEN PURPOSE DPDT 10A 120V Electromechanical Relay DPDT 10A 110/120VAC Socket POWER RELAY, 120VAC, 10A, DPDT, PLUG-IN HL Series 10 A DPST 120 VAC Plug-In Space Saving General Purpose Power Relay PCB power relay 120 VAC 1.3 VA, HL2-H-AC120V-F, Panasonic
HL2-H-AC100V-F
Panasonic Electric Works
General Purpose Relays HL1 Relay RELAY GEN PURPOSE DPDT 10A 100V Electromechanical Relay DPDT 10A 100/110VAC Socket General Purpose Relay Coil Voltage: 100 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-AC24V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 24VAC PLUG-IN Electromechanical Relay DPDT 10A 24VAC Socket RELAY GEN PURPOSE DPDT 10A 24V General Purpose Relay Coil Voltage: 24 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-DC12V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 12VDC PLUG-IN Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket RELAY GEN PURPOSE DPDT 10A 12V POWER RELAY, 12VDC, 10A, DPDT, PLUG-IN General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-DC6V-F
Panasonic Electric Works
General Purpose Relays HL2 Relay RELAY GEN PURPOSE DPDT 10A 6V Electromechanical Relay DPDT 10A 6VDC 40Ohm Socket General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable HL Series 10 A DPST 6 VDC Plug-In Space Saving General Purpose Power Relay
HL2-H-DC24V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 24VDC PLUG-IN Electromechanical Relay DPDT 10A 24VDC 650Ohm Socket RELAY GEN PURPOSE DPDT 10A 24V POWER RELAY, 24VDC, 10A, DPDT, PLUG-IN HL2Relay,Plug-in,Cd-Free, General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable

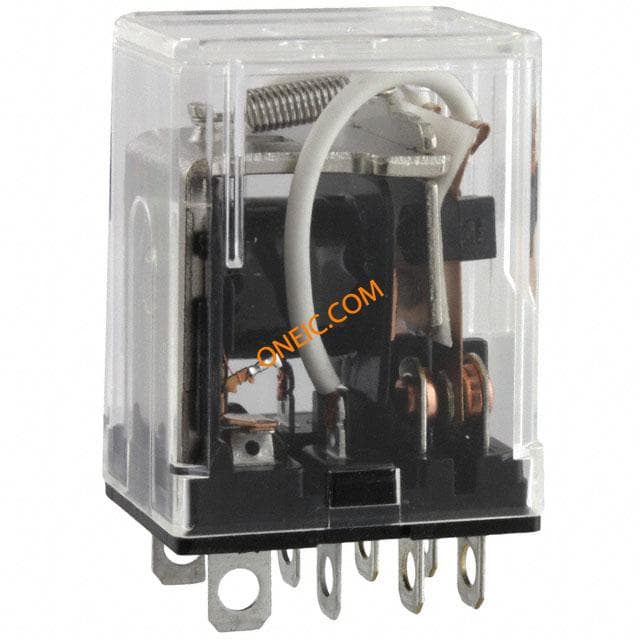

HL2-H-DC48V-F
