S3EB-12V
| Manufacturer | |
| Description | General Purpose Relays Polarized PowerRelay 3 Form A 1 Form B RELAY GEN PURPOSE 4PST 4A 12V Electromechanical Relay 3PST-NO/SPST-NC 3ADC/4AAC 12VDC 720Ohm Through Hole General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 3A+1B 3PST-NO+SPST-NC Current: 4 Amps Mounting: PC Board Operating Function: Single Side Stable S Series 4 A 4PST 12 VDC Through Hole Polarized Single Side Stable Power Relay |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 转速 | 20 cpm for maximum load, 50 cps for low-level load (1 mA 1 V DC) | 电流 | 4 Amps |
| SCR类型 | Amber sealed type | 线圈类型 | Single Side Stable |
| 频率 | 4 A 250 V AC, 3 A 30 V DC | 线圈功率 | 200 mW |
| 电感量 | 370 mH | 电容 | Approx. 3pF |
| 线圈电流 | 16.7 mA | 释放时间 | 10ms |
| 释放范围（时间） | 10ms | 最大电压 | 8.4 VDC |
| 额定输出功率 | 1,000 VA, 90 W | 线圈电阻 | 720 Ohms |
| 最大交流电压 | 22 VDC | 供电电压 | 12 V |
| 开关电压 | 250VAC, 48VDC - Max | 标称电压 | Approx. 3?V |
| 接触电阻 | 50 mohm | Vgs(th)（最大）@ Id | 1.2 VDC |
| 开关电流 | 100?A 100 m V DC | 击穿电压 | 1,500 Vrms |
| 断态电压 | 1.2 VDC | 最大额定电流 | 4 A (AC), 3 A (DC) |
| 绝缘电阻 | 10,000 Mohm at 500 V DC | 最小输入电压 | 1.2 VDC |
| 平均正向功率 | 200 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 8.4 VDC |
| 触点额定电流 | 4A | 触点额定值 @ 电压 | 4A |
机械参数

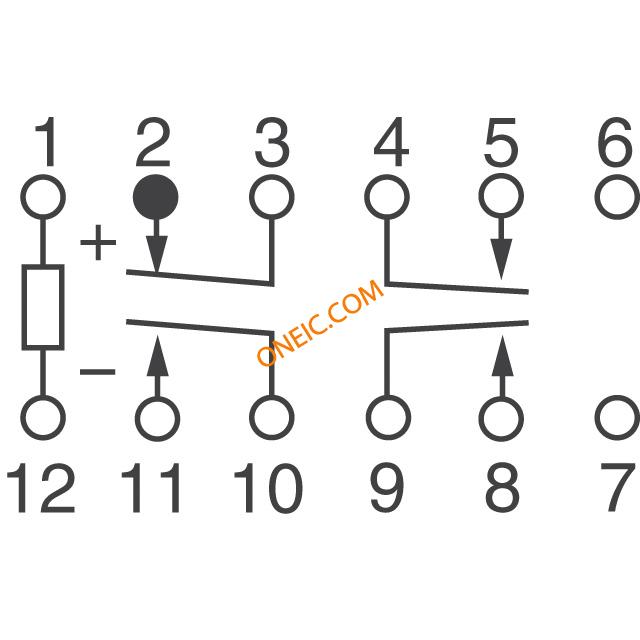

| 包装方式 | Bulk | 触点形式 | 3 Form A (3PST-NO), 1 Form B (SPST-NC) |
| 触点形状 | 4PST (3 Form A, 1 Form B) | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 操作力 | 15ms |
| 触头材料 | Silver Alloy | 端接样式 | Solder Terminal |
| 接触件端接 | Solder Terminal | 典型触点布局 | 3A+1B 3PST-NO+SPST-NC |
| 内部触点材料 | Approx. 12 g .42 oz | ||
产品信息
| 类型 | Relays | 产品特性 | Sealed - Amber |
| 功能 | Single Side Stable | 继电器类型 | General Purpose |
| 卡标准 | General Purpose Relay | 电气寿命 | A 250 V AC: 10^5; 3 A 30 V DC: 2 10^5 |
环境参数
| 动作时间 | 15ms | 机械寿命 | 10^8 |
| 抗冲击能力 | Min. 980 m/s^2 {100 G} | 工作温度 | -55°C ~ 65°C |
| 抗振性（功能） | 176.4 m/s^2 {18 G}, 10 to 55 Hz at double amplitude of 3 mm | ||
