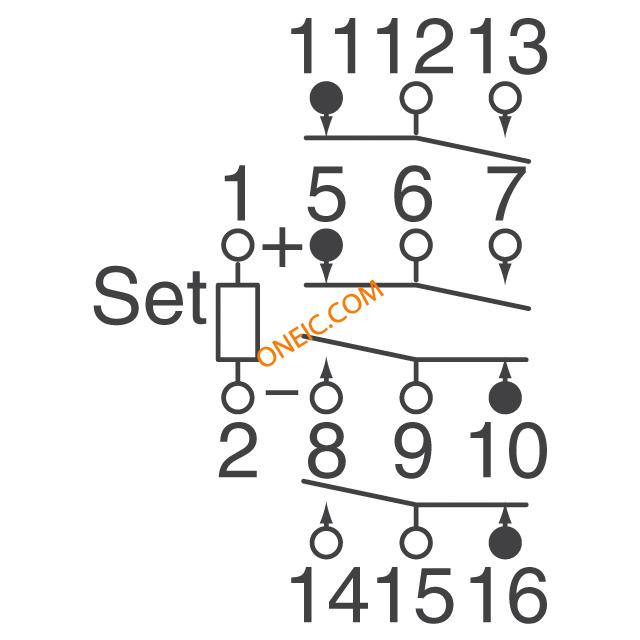

SP4-DC24V
| Manufacturer | |
| Description | General Purpose Relays 10A 24VDC 4PDT PLUG-IN Electromechanical Relay 4PDT 10A 24VDC 1.92KOhm Plug-In RELAY GEN PURPOSE 4PDT 10A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
电气参数
| 转速 | 20 cpm | 电流 | 10 Amps |
| 线圈类型 | Single Side Stable | 频率 | 2C: 15 A 250 V AC, 10 A 30 V DC; 4C: 10 A 250 V AC, 10 A 30 V DC |
| 线圈功率 | 300 mW | 电感量 | 3 H |
| 线圈电流 | 12.5 mA | 释放时间 | 20ms |
| 额定功率 | 300W|2.5kVA | 最大电压 | 16.8 VDC |
| 额定输出功率 | 2C: 3,750 VA, 300 W, 4C: 2,500 VA, 300 W | 可见输出 | No |
| 额定电压 | 30 | 线圈电阻 | 1.92 kOhms |
| 推频（MHz/V） | No | 最大交流电压 | 36 VDC |
| 供电电压 | 24 V | 开关电压 | 250VAC, 30VDC - Max |
| 标称电压 | Max. 30 ms (Approx. 25 ms) | 接触电阻 | 30 mohm |
| Vgs(th)（最大）@ Id | 2.4 VDC | 钳位电压 | 16.8VDC |
| 开关电流 | 100 mA, 5 V DC | 二极管配置 | No |
| 击穿电压 | 1,500 Vrms | 最大额定电流 | 2C: 15 A (AC) 10 A (DC), 4C: 10 A |
| 触点电压（最大） | 3,000 Vrms | 绝缘电阻 | 1,000 Mohm at 500 V DC |
| 最小输入电压 | 2.4VDC | 平均正向功率 | 300 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC | 触点额定电流 | 10A |
机械参数
| 密封 | Unsealed | 深度 | 25.6 |
| 高度 | 27.65 | 重量 | 2C: 50 g 1.76 oz ; 4C: 65 g 2.29 oz |
| 包装方式 | Bulk | 触点形式 | 4 Form C (4PDT-BM) |
| 安装类型 | Plug-In | 安装样式 | Plug In |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Tin Oxide |
| 总长度 | 51 | 端接样式 | Quick Connect |
| 触点数 | 14 | 接触件端接 | Quick Connect |
| 典型触点布局 | 4PDT | 内部触点材料 | 2C: Approx. 0.392 N (40 g 1.41 oz ), 4C: Approx. 0.196 N (20 g 0.71 oz ) |
产品信息
| 类型 | Power Relay | 功能 | Single Side Stable |
| 继电器类型 | Non-Latching | 卡标准 | General Purpose Relay |
| 电气寿命 | 2C: 15 A 250 V AC: 10^5, 10 A 30 V DC: 10^5; 4C: 10 A 250 V AC: 10^5, 10 A 30 V DC: 10^5 | ||
环境参数
| 动作时间 | 30ms | 湿度范围 | 5 to 85% R.H. |
| 机械寿命 | 5 10^7 | 抗冲击能力 | Min. 392 m/s^2 {40 G} |
| 工作温度 | -50°C ~ 60°C | 温度系数 | . 40C with nominal coil voltage and at nominal switching capacity |
| 抗振性（功能） | 176.4 m/s^2 {18 G}, 10 to 55 Hz at double amplitude of 3 mm | 抗振性（破坏） | 176.4 m/s^2 {18 G}, 10 to 55 Hz at double amplitude of 3 mm |
