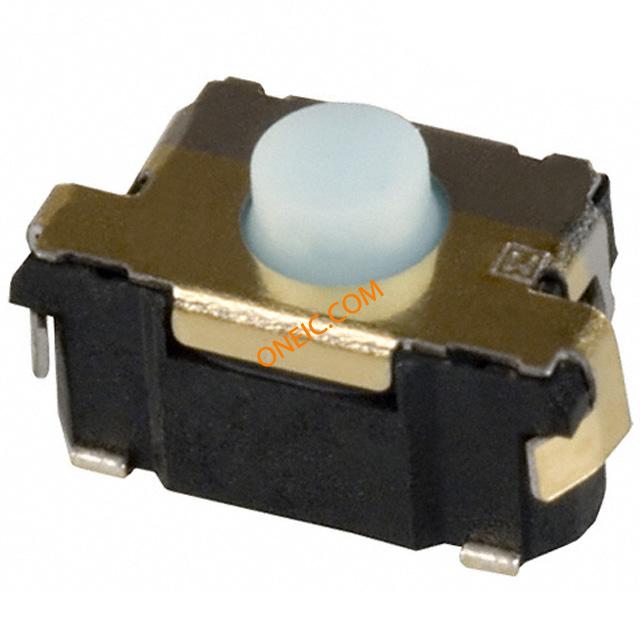

EVQ-P4H03B
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | P12305SCT | Standard Package | 2,500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 15 V |
| Switch Function | Off-Mom | Current Rating (Max) | 20 mA |
| Contact Rating @ Voltage | 0.02A @ 15VDC | ||
Mechanical
| Outline | 6.20mm x 2.55mm | Packaging | Tape & Reel (TR) |
| Actuator Type | Standard | Mounting Type | Edge Mount, Right Angle |
| Switch Travel | 0.70mm | Operating Force | 250gf |
| Termination Style | SMD (SMT) Tab | Actuator Orientation | Side Actuated |
| Actuator Height off PCB, Vertical | 2.50mm | ||
Product Info
| Illumination | Not Illuminated | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- EVQP4/EVQP8 Type
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
