点击放大查看

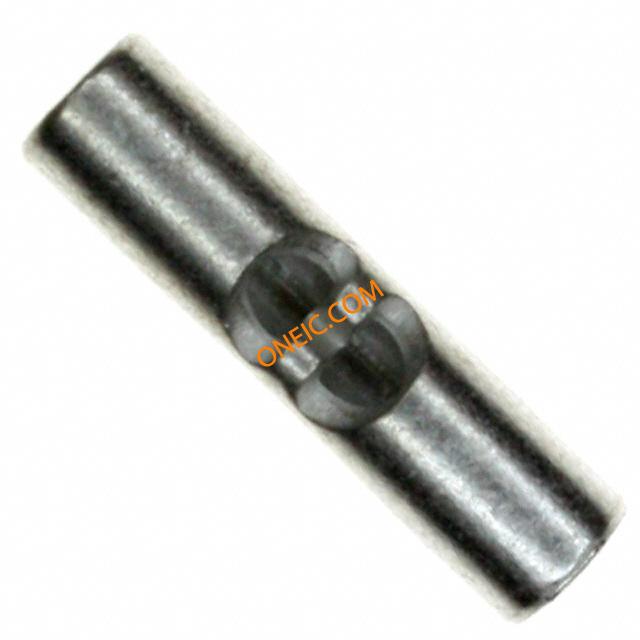

BS14-C

Manufacturer	Panduit Corp.
Description	Butt Splice Terminal 14-16AWG 15.7mm 4.1mm Tin Terminals Butt Splice non-ins 16 - 14 AWG BUTT SPLICE NON INS 16-14AWG BUTT SPLICE;NON-INSULATED; 16-14AWG BUTTSPLICE,NON-INSULATED;16-14AWG Butt Splice, Non-Insulated, 16-14 AWG, Pack of 100
Category	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

产品	Splices	交货时间	14 Days
子类别	Connector Terminals	产品类别	Terminals
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

深度	4.1	重量	4 oz
镀层	Tin	包装方式	Bulk
绝缘类型	Non-Insulated	导线线规	14-16 AWG
端接方式	Crimp	基体材料	Copper
端子类型	Butt Splice, Inline, Individual Openings	行程角度	Straight
接触镀层	Tin	总宽度	0.16"
触头材料	Copper	总长度	0.62"
包装数量	100	主要材料	Splice
绝缘材料 - 类型	Non-Insulated	进线口数	2

产品信息

类型	Butt Splice Terminal	产品特性	Brazed Seam, Serrated Mating Area
UNSPSC代码	39121400	制造商全称	BSSeries

环境参数

工作温度

INDOOR/OUTDOOR

Documents & Media

Online Document

index.htm?Nu=P_RollupKey&N=5000001+4294949550&Nty=1&in_dim_search=1&sid=135DD65E88E0

PDF Document

A41338.pdf

PDF Document

BS10/14/18 Drawing

PDF Document

1765553.pdf
