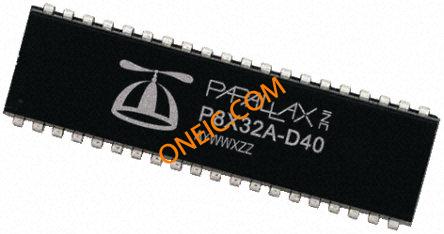

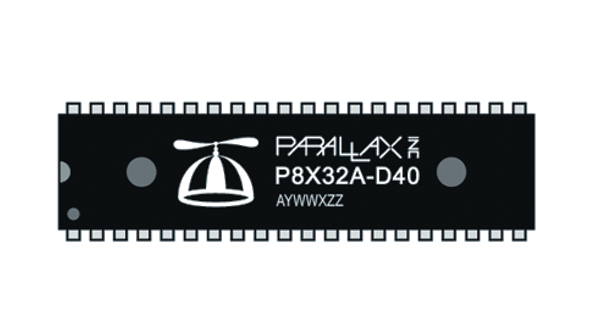

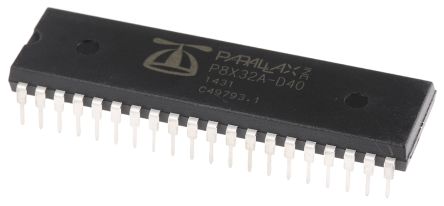

P8X32A-D40
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | P8X32AD40 | Product Category | 32-bit Microcontrollers - MCU |
| Standard Package | 10 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | ||
Electrical
| Speed | 80MHz | RAM Size | 32K x 8 |
| Core Size | 32-Bit | Core Type | P8X32A |
| Interface | USB | Clock Rate | 80 MHz |
| Memory Size | 32 KB | Memory Type | :ROM |
| Number of I/O | 32 | Voltage Rating | 2.7 → 3.6 V |
| Clock Frequency | :80MHz | Frequency - Max | 80MHz |
| Oscillator Type | Internal | Voltage - Supply | 1.8 V to 3.6 V |
| Number of Channels | 0 | Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | ROM | ||
Mechanical
| Width | 13.72mm | Height | 3.81mm |
| Length | 52.32mm | Weight | 0.217600 oz |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :40 | Package / Case | 40-DIP |
| Package Cooled | PDIP | Material Finish | :- |
| Size / Dimension | 52.32 x 13.72 x 3.81mm | Number of Positions | 40 |
| Number of Cores/Bus Width | 32bit | ||
Product Info
| USB | 1 x Device | Series | Propeller |
| On-Chip RAM | No | Peripherals | :- |
| Architecture | RISC | Controller Series | :P8X32A |
| RF Family/Standard | Propeller | ||
Environmental
| Operating Temperature | +125 °C | ||
