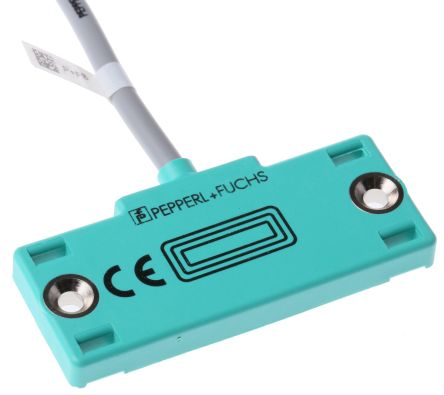

点击放大查看
CBN2-F46-E2
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output | PNP-NO | Output Type | PNP |
| Voltage Rating | 30V | Voltage - Supply | 10 → 30 V dc |
| Current - Switching | 100 mA | Overload Protection | 是 |
| Frequency - Switching | 0 → 10 Hz | Reverse Polarity Protection | 是 |
| Voltage - DC Spark Over (Nom) | 30V | Current - Short Circuit Rating (SCCR) | Yes |
Mechanical
| Depth | 5mm | Width | 20mm |
| Length | 50mm | Body Finish | Rectangular |
| Termination | Cable | Terminal Type | Wire Lead |
| Connector Type | 导线 | Mounting Style | Through Hole |
| Housing Material | PBT | Primary Material | Proximity |
| Size / Dimension | 50 x 20 x 5 mm | Supplier Device Package | Block |
Product Info
| Type | Capacitive | Style | 块状 |
| Function | Proximity | Technology | Capacitive |
| Measuring Range | 2mm | ||
Environmental
| Seal Rating | IP67 | Operating Range | 2 mm |
| Ingress Protection | IP67 | Detection Capability | 2 mm |
| Operating Temperature | +70°C | ||
