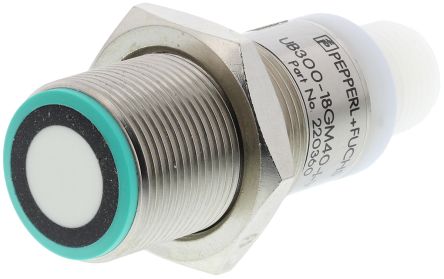

UB300-18GM40-I-V1
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Output | Current | Output Type | Analogue |
| Voltage Rating | 30V | Voltage - Supply | 10 → 30 V dc |
| Current - Switching | 20 mA | Overload Protection | 是 |
| Frequency - Output 1 | 390kHz | Voltage - DC Spark Over (Nom) | 30V |
| Current - Short Circuit Rating (SCCR) | Yes | ||
Mechanical
| Length | 50.2mm | Body Finish | Cylindrical |
| Termination | QuickDisconnect | Thread Size | M18 x 1 |
| Terminal Type | 4-Pin M12 Connector | Connector Type | 4 引脚 M12 连接器 |
| Housing Material | Nickel Plated Brass | Primary Material | Proximity |
| Size / Dimension | 50.2 x 18 mm | Supplier Device Package | Barrel |
Product Info
| Type | Ultrasonic | Style | 柱体 |
| Function | Proximity | Technology | Ultrasonic |
| Measuring Range | 300mm | ||
Environmental
| Seal Rating | IP67 | Operating Range | 30 → 300 mm |
| Ingress Protection | IP67 | Detection Capability | 30 → 300 mm |
| Operating Temperature | +70°C | ||
