点击放大查看

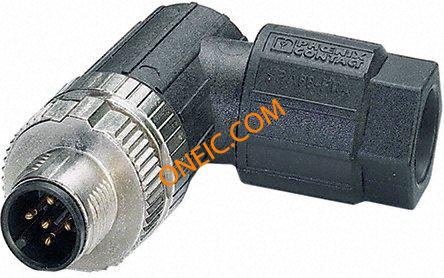

1432570
| Manufacturer | |
| Description | Circular Metric Connectors SACC-MR-5SC M SCO Conn Sensor Actuator M 5 POS 1 Port CONN M12 5POS ANGLED PLUG Sensor plg,M12 R/A sprng cg 5wy,SPEEDCON Sensor/actuatorconnector,plug,angled,5-pos Phoenix Contact SACC 系列 5路 电缆安装 直角 连接器 插头 , 公触点 |
| Category |
商业参数
| 商标名 | PLUSCON Field | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60V | 连接器阻抗 | M12 |
| 最大额定电流 | 4A | ||
机械参数
| 深度 | 51 | 外形尺寸(长x宽) | 19mm |
| 直径 | 19 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 19mm |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Spring-Cage | 触头类型 | 5Signal |
| 安装类型 | Free Hanging (In-Line), Angled | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Push-Twist | 触头材料 | Bronze |
| 壳体材料 | Nylon | 总长度 | 43 |
| 第一触头极性 | M | 触点数 | 5 |
| 位数 | 5 | 外壳尺寸-插件 | M12-5 |
| 外壳材料及表面处理 | Brass, Nickel Plated | ||
产品信息
| 类型 | Sensor Actuator | 连接器性别 | PL |
| 系列 | SACC | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Connectors | ||
环境参数
| 密封等级 | IP67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
