1542978
| Manufacturer | |

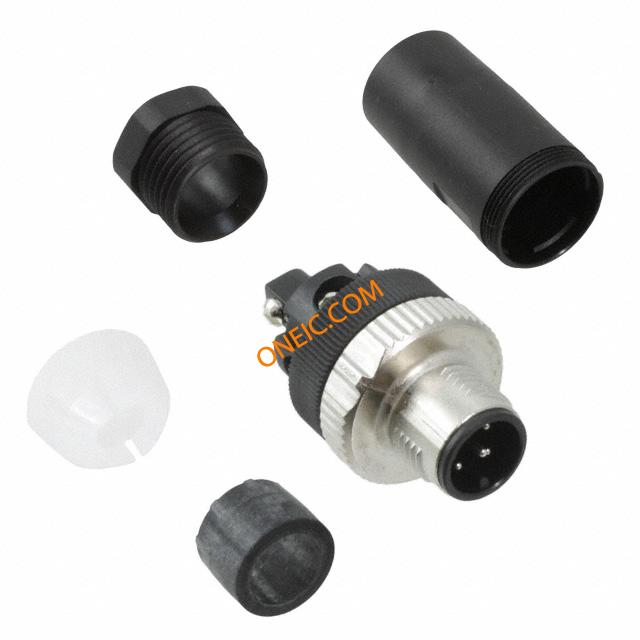

| Description | Circular Metric Connectors Sensor/ACTR connect 5-pos.,male,straight Conn Sensor Actuator M 5 POS ST Cable Mount 5 Terminal 1 Port CONN M12 5POS PLUG Sensor/actuator connectors SACC-MS-5CON-PG 9-M SCO SACC-MS-5CON-PG9-MSCO |
| Category |
商业参数
| 商标名 | PLUSCON Field | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 最大额定电流 | 4 A |
机械参数
| 重量 | 0.843048 oz | 直径 | 20 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | 5Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Brass |
| 紧固类型 | Push-Twist | 触头材料 | Brass |
| 总长度 | 62 | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 位数 | 5 | 外壳尺寸-插件 | M12-5 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | ||
产品信息
| 类型 | Sensor Actuator | 连接器性别 | RCP |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
