1542994
| Manufacturer | |
| Description | Circular Metric Connectors SACC-MR-5CON-PG 7-M SCO Conn Sensor Actuator M 5 POS Screw RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A PLUG Sensor/actuator connectors SACC-MR-5CON-PG 7-M SCO SACC-MR-5CON-PG7-MSCO Phoenix Contact 连接器 |
| Category |
商业参数
| 商标名 | PLUSCON Field | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60V | 最大额定电流 | 4A |
机械参数
| 高度 | 41 | 重量 | 0.840579 oz |
| 直径 | 20 | 包装方式 | Bulk |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | 5Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | White Bronze | 紧固类型 | Push-Twist |
| 触头材料 | Bronze | 总长度 | 41 |
| 端接样式 | Screw | 第一触头极性 | M |
| 触点数 | 5 | 位数 | 5 |
| 外壳尺寸-插件 | M12-5 | 外壳材料及表面处理 | Brass, Nickel Plated |
产品信息
| 类型 | Sensor Actuator | 连接器性别 | RCP |
| 系列 | M12 | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
相关型号

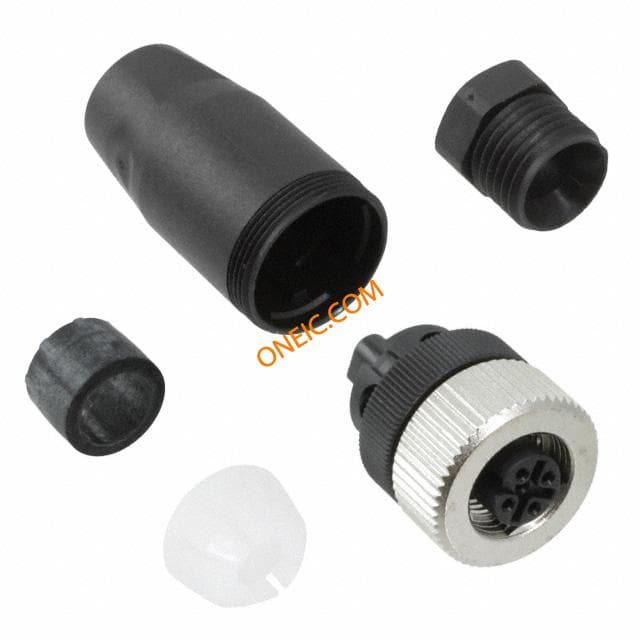

1543032
Phoenix Contact
Circular Metric Connectors SACC-FS-5CON-PG 7-M SCO Conn Sensor Actuator F 5 POS Screw ST Cable Mount 5 Terminal 1 Port CONN M12 5POS SOCKET Sensor/actuator connectors SACC-FS-5CON-PG 7-M SCO Connector;Sensor/Actuator;Female;Straight;5-Pos.;ScrewConn.

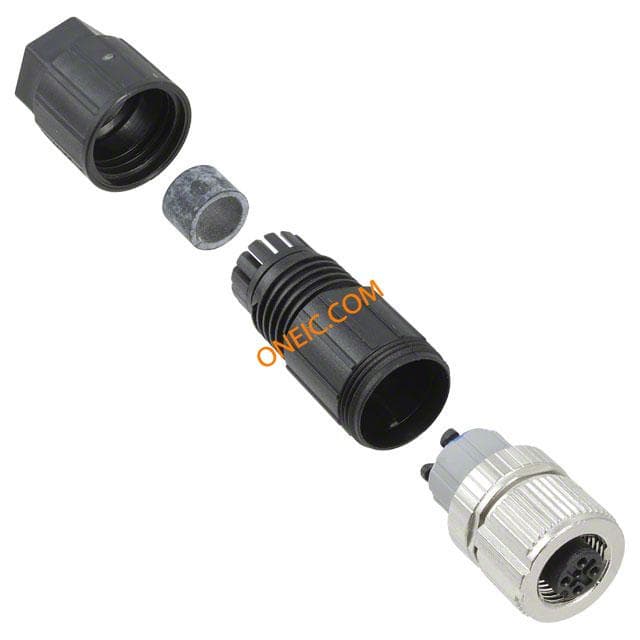

1432583
Phoenix Contact
Circular Metric Connectors SACC-FS-5SC M SCO Conn Sensor Actuator F 5 POS ST 1 Port CONN M12 5POS SOCKET Sensor sckt,M12 spring cage 5wy,SPEEDCON SENSOR/ACTUATORCONNECTOR,SOCKET5-POS Phoenix Contact SACC 系列 5路 电缆安装 直向 连接器 插头 , 母触点
1543414
Phoenix Contact
Circular Metric Connectors SACC-FR-5CON-PG 9- M SCO Conn Sensor Actuator F 5 POS RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A SOCKET Sensor/actuator connectors SACC-FR-5CON-PG 9-M SCO SACC-FR-5CON-PG9-MSCO Phoenix Contact 连接器
1543061
Phoenix Contact
Circular Metric Connectors SACC-FR-5CON-PG 7-M SCO Conn Sensor Actuator F 5 POS RA Cable Mount 4 Terminal 1 Port CONN M12 5POS R/A SOCKET Sensor/actuator connectors SACC-FR-5CON-PG 7-M SCO SACC-FR-5CON-PG7-MSCO Phoenix Contact 连接器

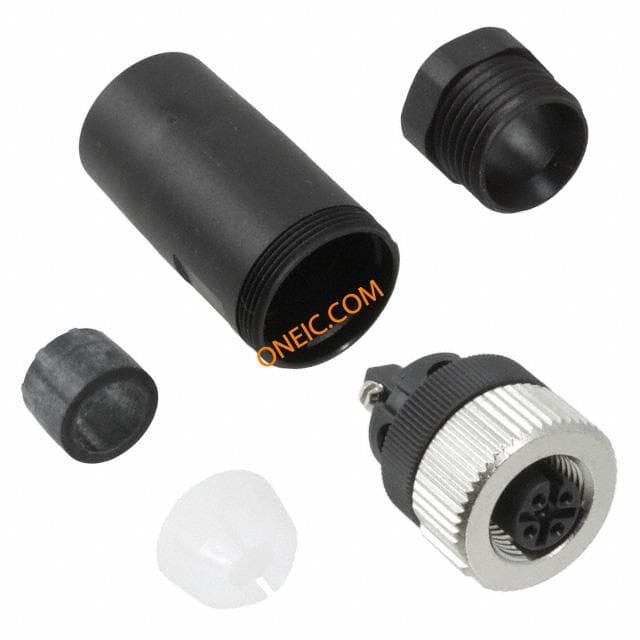

1543045
Phoenix Contact
Circular Metric Connectors SACC-FS-5CON-PG 9-M SCO Conn Sensor Actuator F 5 POS ST Cable Mount 5 Terminal 1 Port CONN M12 5POS SOCKET Sensor/actuator connectors SACC-FS-5CON-PG 9-M SCO SACC-FS-5CON-PG9-MSCO

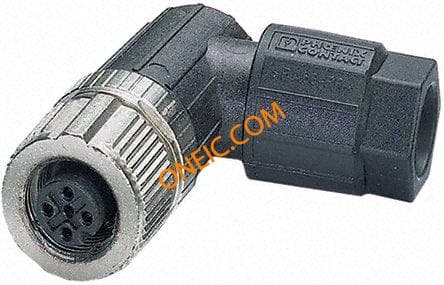

1432596
