1585702
| Manufacturer | |
| Description | Heavy Duty Power Connectors Insert Male 2P 70A 16 mm Axial Scrw Conn HEAVYCON Contact Insert Module PIN 2 POS Screw ST HEAVYCON INSERT MODULE ML 2POS HC-M-02-HS-70/16-MOD-ST |
| Category |
Business
| Tradename | HEAVYCON | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 70A |
| Voltage - Input (Min) | 1000V | ||
Mechanical
| Depth | 45 | Height | 14.6 |
| Weight | 1.167215 oz | Packaging | Bulk |
| Termination | Screw | Mounting Type | Straight |
| Connector Type | Module | Contact Finish | Silver |
| Insertion Force | Male | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Length - Overall | 34.2 |
| Termination Style | Screw | 1st Contact Gender | PIN |
| Number of Contacts | 2 | Number of Positions | 2 |
Product Info
| Type | HEAVYCON Contact Insert Module | Gender | Male |
| Series | B48 | Product Type | Inserts |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
1679304
Phoenix Contact
Heavy Duty Power Connectors HC-M-MHR-A4-N HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 16, For 4 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A4-N Heavy Duty Power Connectors Hinged Frame for B16 Housing, 4 Modules HINGEDRETAININGFRAMEFOR4MODULES
1586183
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 4.0 Crimp Fem Cont. 10mm2 Ag CK4,0-ED-10,00BU AG CRIMP CONTACT SOCKET Heavy Duty Power Connectors Turn 4.0 Crimp Fem Cont. 10mm2 Ag CK40-ED-1000BUAG Phoenix Contact HC-M 系列 压接触点 , 适用于HC-M-02
1679281
Phoenix Contact
Heavy Duty Power Connectors Hinged Frame for B6 Housing, 2 Modules HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 6, For 2 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A2-N HC-M-MHR-A2-N
1679317
Phoenix Contact
Heavy Duty Power Connectors Hinged Frame for B24 Housing, 6 Modules HEAVYCON Hinged Retaining Frame, For Panel Mounting Base HC-B 24, For 6 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A6-N HINGEDRETAININGFRAMEFOR6MODULES

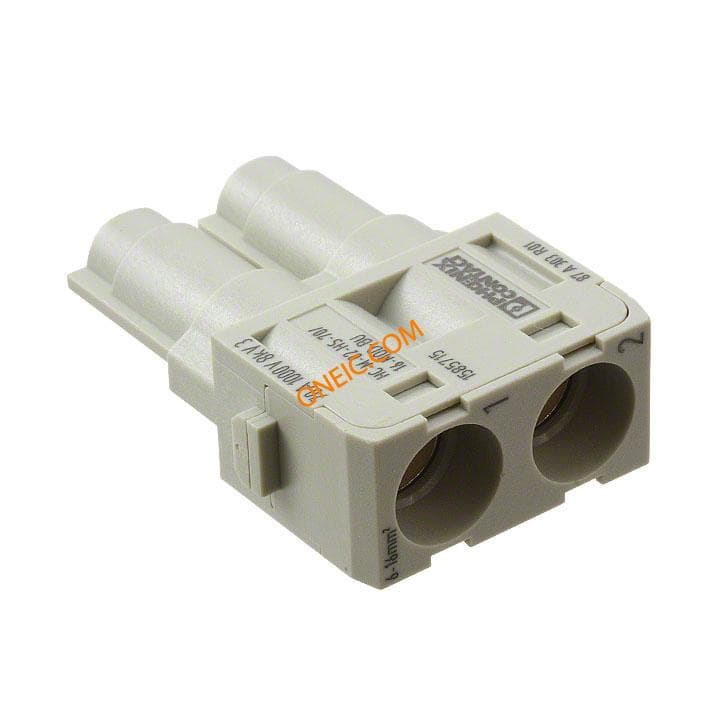

1585715
