点击放大查看

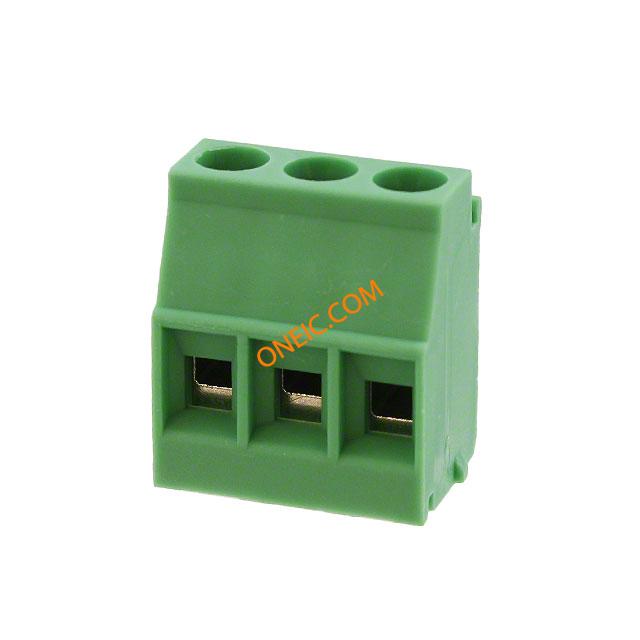

1707221
| Manufacturer | |
| Description | Fixed Terminal Blocks MKDSO 2.5/ 3-L GN Conn PC Terminal Block 3 POS 5mm Solder ST Thru-Hole 24A CONN TERM BLOCK 3POS 5MM Printed-circuit board connector MKDSO 2,5/ 3-L Connector Accessories Termination Block Solder To The Printed Circuit Board PC terminal block, Nominal current: 24 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Type of ... PC terminal block, Nominal current: 24 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 3, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Article with lateral pin exit MKDSO25/3-L Phoenix Contact COMBICON MKDSO 系列 5mm 节距 3 路 印刷电路板接线端子块, 通孔, 螺钉端接 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Fixed Terminal Blocks | 产品类别 | Fixed Terminal Blocks |
| 标准包装数量 | 250 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 20A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 24 A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Green | 深度 | 15.3 |
| 间距 | 0.197" (5.00mm) | 高度 | 21.25 |
| 长度 | 15.3mm | 重量 | 8 lbs |
| 材料（通用） | 聚酰胺 | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Solder |
| 螺纹规格 | M3 | 安装类型 | Through Hole |
| 排数 | 1 | 螺钉扭矩 | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| 壳体材料 | Polyamide (PA), Nylon | 总长度 | 15.45 |
| 端接排数 | 螺钉 | 导线端接方式 | Screw - Rising Cage Clamp |
| 配接方向 | Horizontal with Board | 触点数 | 3 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | PC Terminal Block | 系列 | COMBICON MKDSO |
| 层数 | 1 | 每层位数 | 3 |
