点击放大查看

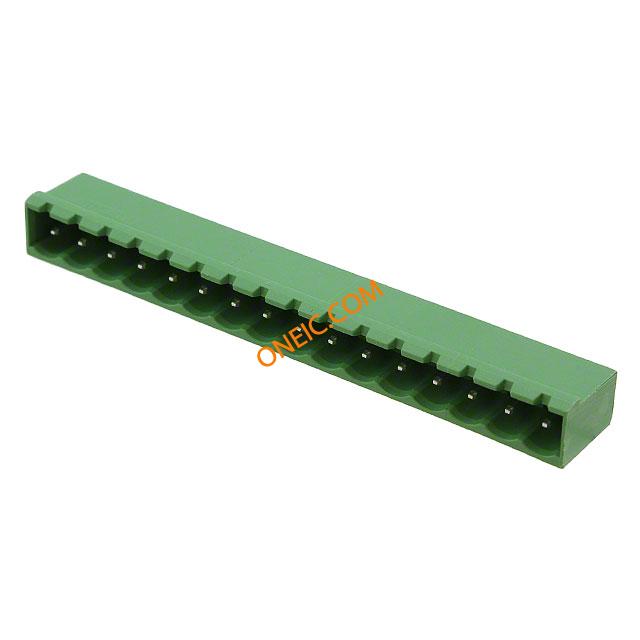

1757381
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBA 2.5/16-G-5.08 Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 5.08MM Phoenix Contact MSTBA Series 5.08mm Pitch 16 Way 1 Row Right Angle PCB Header, Solder Termination, 12A MSTBA25/16-G-508 Phoenix Contact COMBICON MSTBA 系列 16路 5.08mm节距 (1排) 直角 PCB 接线端子块 , 焊接端接, 12A, 通孔 |
| Category |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12A |
| 最小输入电压 | 320V | 最小供电电压 | 250V |
机械参数
| 颜色 | Green | 深度 | 8.6 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 12 mm |
| 重量 | 5.396916 oz | 包装方式 | Bulk |
| 方向 | 直角 | 端接方式 | Solder |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 93.44 mm | 端接排数 | 螺钉拧紧 |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 16 | 位数 | 16 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MSTBA | CAD图纸 | 3D CAD Model |
| 行业别名 | MSTBA 2, 5/16-G-5, 08 | 层数 | 1 |
| 每层位数 | 16 | ||
